250HP MARATHON 3580RPM 447/9TS TEFC 3PH MOTOR W624A

250HP MARATHON 3580RPM 447/9TS TEFC 3PH MOTOR W624A

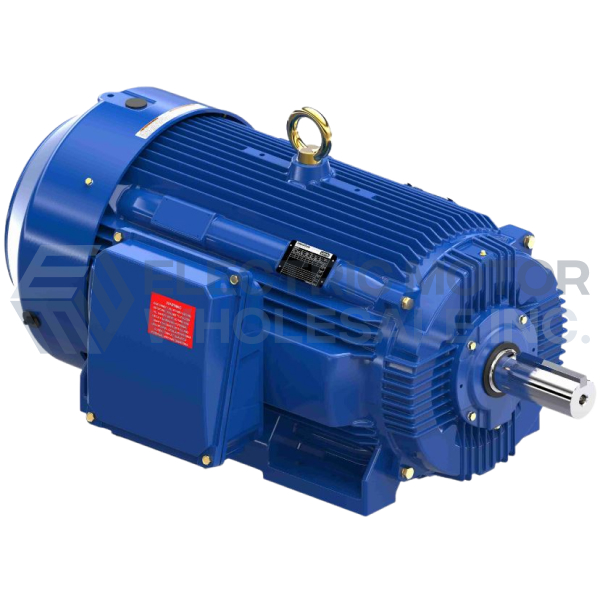

447-9T TEFC.jpg

Part Number:

W624A

Model/Spec Number:

449TSHFCD9003

Manufacturer:

Marathon Obsolete
W624A MARATHON 250HP Three Phase XRI IEEE-841 Blue Chip Severe / Automotive Duty Premium Motor is designed for extreme applications in the process industries such as chemical plants, pulp and paper mills, refineries, above-ground mines, food processing, foundries, and other severe duty environments.

Item Discontinued

Click below to request an agent review potential options.

Weight:

2,501 lbs

Dimensions:

48 x 68 x 40 inches

HS Code:

8501.53.0000

UPC:

722856193186

Technical Details

Brand:

Marathon

Application:

Severe Duty, IEEE 841

Output HP:

250

Output KW:

187

Output RPM:

3580

Frame Size NEMA:

447/9TS

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP56

Voltage:

460

Product Information Packet

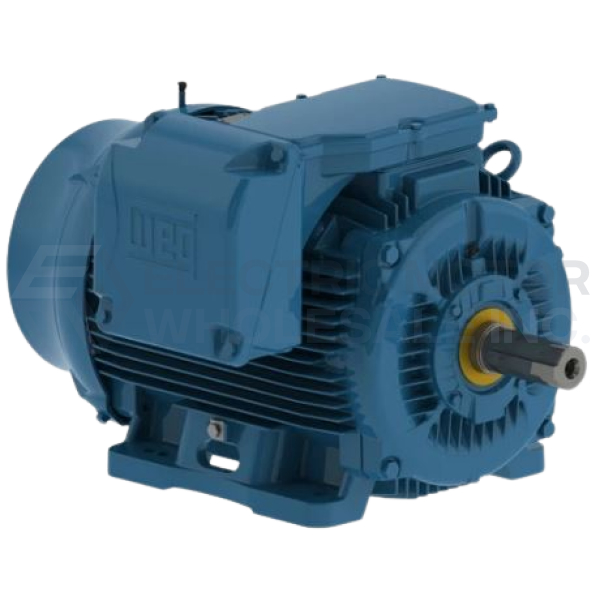

Image for 250HP WEG 3573RPM 447/9TS TEFC 3PH SEVERE DUTY IEEE 841 MOTOR 25036ST3QIE449TS-W22
