Y991 MARATHON 10HP 3-PHASE VECTOR DUTY BRAKE MOTOR 215THTS8071

Electric Motors

Discontinued Electric Motors

Marathon Discontinued Motors

10HP MARATHON 1775RPM 215TC TENV 3PH INVERTER DUTY MOTOR Y991

Part Number:

Y991

Model/Spec Number:

215THTS8071

Manufacturer:

Marathon Obsolete

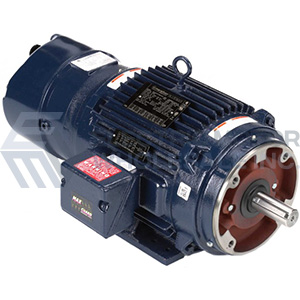

Y991 MARATHON 10HP Three Phase Blue Max 2000 Inverter (Vector) Duty Brakemotor is designed for vector applications where up to a 2000:1 constant torque speed range is required. For use on Conveyors, Machine tools, Cranes, Hoists, and other industrial machinery requiring quick stop and/or holding torque.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

332 lbs

Dimensions:

27 x 41 x 26 inches

HS Code:

8501.52.4000

UPC:

722856025678

Technical Details

Specifications

Brand:	Marathon
Application:	Brakemotor (Vector Duty)
Output HP:	10
Output KW:	7.5
Output RPM:	1775
Frame Size NEMA:	215TC
Mount NEMA:	C Face With Base
Enclosure NEMA:	TENV
Enclosure IEC:	IP43
Voltage:	230/460

Documentation

Product Information Packet

Additional Information

APPLICATIONS: Designed for vector applications where up to a 2000:1 constant torque speed range is required. For use on Conveyors, Machine tools, Cranes, Hoists, and other industrial machinery requiring quick stop and/or holding torque.

FEATURES:

MAX GUARD® Class F insulation system
Constant torque operation from 0 to base speed on vector drive
Constant HP operation to twice base speed
Optimized for operation with IGBT inverter (NEMA Design A)
Normally closed thermostats (one per phase, Class F)
Ball Bearings
Continuous duty at 40ºC ambient
Will accept encoder through Mod Central
Stearns brakes, 56 series through 15 Lb-Ft, 87 series, 25 Lb-Ft and larger
Includes 140% rated spring-set self-adjusting NEMA 2 disk brake (Brake coil voltage matches motor)
UL Recognized, CSA Certified, and CE Mark
Three year warranty (brake disks are exempt)
