Product Overview

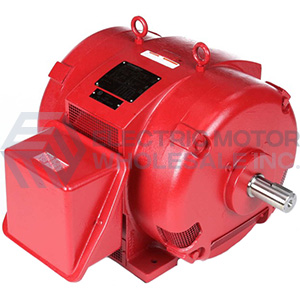

U530 MARATHON 125HP Fire Pump Motor is ideal for use on pumps designed for fire pump duty and installed per NFPA-20. These drip proof motors are intended for installation in relatively clean and dry environments.

Part Number:

U530

Model/Spec Number:

404TSTDS4017

Manufacturer:

Marathon Obsolete

Technical Details

Specifications

Brand	Marathon
Application	Fire Pump
Output HP	125//100
Output KW	93//75
Output RPM	3560//2960
Frame Size NEMA	404TS

Documentation

Product Information Packet

Additional Information

APPLICATIONS: For use on pumps designed for fire pump duty and installed per NFPA-20. These drip proof motors are intended for installation in relatively clean and dry environments. Fire Pump motors are not recommended for use with variable frequency drives.

FEATURES:

UL File EX5190, CSA File LR2025 and CE Mark
Ball bearings
1.15 Service Factor
Red paint on 25 HP through 200 HP
NEMA Design B, Code G or less
Dual voltage motors have 12 leads, suitable for wye-delta or across the line start on either voltage, or part winding start on low voltage
Will accept C-Face kits
Rated 60/50 hertz, 190/380 or 380 volt at next lower
230/460 and 460 Volt models rated for 50Hz at next lower HP
Efficiency levels meet EISA requirements
