K160 MARATHON 3/4HP GENERAL PURPOSE TEFC MOTOR 5K37NN30

Electric Motors

Discontinued Electric Motors

Marathon Discontinued Motors

3/4HP MARATHON 3450RPM 56 TEFC 3PH MOTOR K160

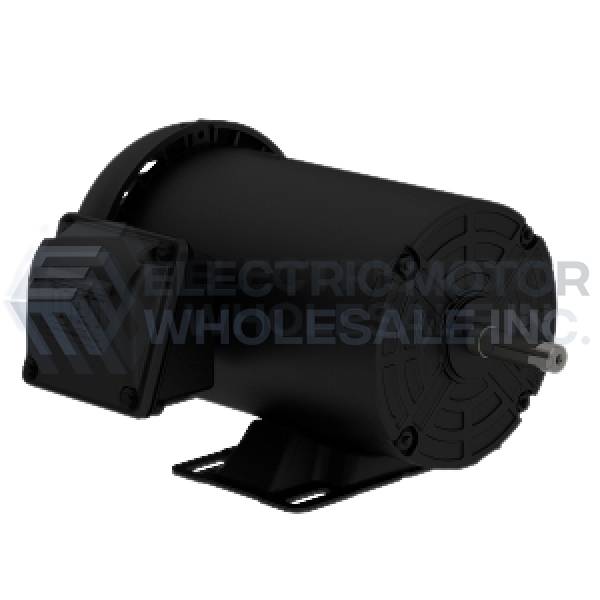

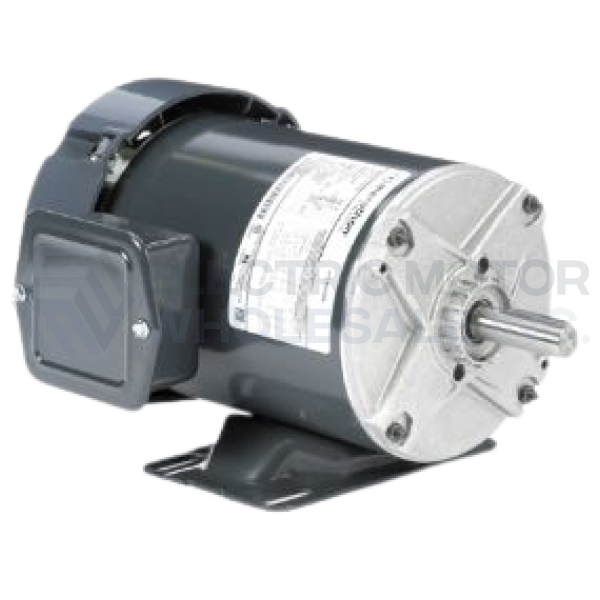

Picture is for reference only.

Part Number:

K160

Model/Spec Number:

5K37NN30

Manufacturer:

Marathon Obsolete

K160 MARATHON 3/4HP Three Phase Totally Enclosed General Purpose Rigid Base Motor designed for use on pumps, fans, blowers, compressors, conveyors, and other industrial machinery installed in damp, dusty, or dirty environments.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

20 lbs

Dimensions:

11 x 16 x 10 inches

HS Code:

8501.51.4040

UPC:

722856013828

Technical Details

Specifications

Brand:	Marathon
Application:	General Purpose
Output HP:	3/4
Output KW:	0.55
Output RPM:	3450
Frame Size NEMA:	56
Mount NEMA:	With Base
Enclosure NEMA:	TEFC
Voltage:	208-230/460
Frequency (Hz):	60

Documentation

Product Information Packet

Additional Information

APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

FEATURES:

UL recognized component listing and CSA certification
Continuous duty cycle design
Class B Insulation
Permanently lubricated, double-sealed bearings

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
