5HP MARATHON 1755RPM 184TC TENV 3PH BRAKE MOTOR C406

Part Number:

C406

Model/Spec Number:

184TTTL7041

Manufacturer:

Marathon Obsolete

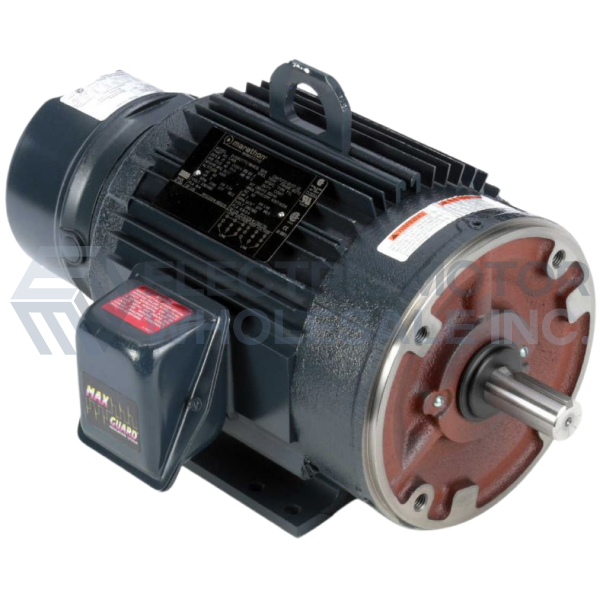

C406 MARATHON 5HP Three Phase Totally Enclosed Brake motor is designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

115 lbs

Dimensions:

17 x 23 x 14 inches

HS Code:

8501.52.4000

UPC:

722856027641

Technical Details

Specifications

Brand:	Marathon
Application:	Brakemotor
Output HP:	5//3
Output KW:	3.7//2.2
Output RPM:	1755//1465
Frame Size NEMA:	184TC
Mount NEMA:	C Face With Base
Enclosure NEMA:	TENV
Enclosure IEC:	IP43
Voltage:	230/460//190/380

Documentation

Product Information Packet

Additional Information

APPLICATIONS: Brake motor designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

FEATURES:

Class F Insulation
Fail-safe, spring set Stearns 56 Series brake for holding or stopping
Manual release lever on rear of brake housing
Brake leads are terminated at the brake
Universal mounting, no modifications needed
Brake coil voltage matches motor voltages, see mod section for other brake coils
Ball bearings, mechanically locked on shaft end
UL Recognized and CSA Certified
Brake has manual wear adjustment for longer pad life
Brake leads routed through motor conduit box (TENV only)
Universal mounting, no modifications needed

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
