GR-HMQ842-60-H1-56-31 GROVE 60:1 H1 Right Angle Gear Reducer GR8420582.31
GR-HMQ842-60-H1-56-31 GROVE 60:1 H1 Right Angle Gear Reducer GR8420582.31
Part Number:
GR8420582.31Model/Spec Number:
GR-HMQ842-60-H1-56-31Manufacturer:
Grove GearGROVE Gearing products are Non-Returnable. Once the order is placed it cannot be canceled. Standard lead times are 5-10 business days. For urgent expedited orders please contact our office for availability.
Regular Price
USD
$
3,673
36
Shipping Details
Free No Rush Shipping
Weight:
149 lbsDimensions:
32 x 24 x 22 inchesHS Code:
8483.00.0000UPC:
690310028605Technical Details
Specifications
Max Input HP @1750: | 4.389 |
Output RPM @1750: | 35 |
Reduction Ratio: | 50:1 |
Torque (lb-in)@1750rpm: | 6170 |
Overhung Load (lbs.): | 2533 |
Shaft Center Distance: | 4.25 |
Shaft Center Height: | 4.44 |
Mount Footprint: | 5.00" x 8.50" |
NEMA Input Mounting: | 56C |
Mount Style: | HMQ |
Documentation
Additional Information

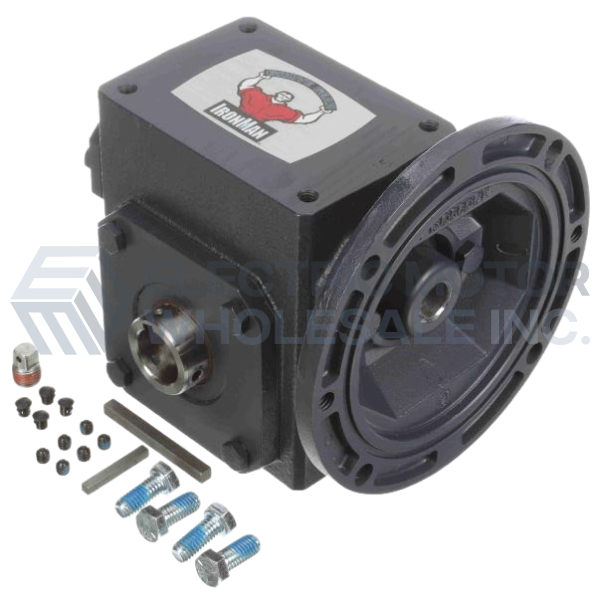

Grove Cast Iron Right Angle Worm Gear Reducer is designed for a wide variety of applications requiring slow speed and high torque, ideal for conveyors, material handling, textile machines, packaging machinery, etc.
FEATURES:
- Heavy duty cast iron housing
- Factory-filled premium Mobil Glygoyle 460 polyalkalene lubricant
- Precision machined mounting surfaces
- O-rings on input and output covers
- Viton double lip seals provide extended life
- NEMA C input flange, Push-off holes
- Bronze worm gear chill cast from high quality bronze
- Tapered roller bearings
- Premium Grade 5 assembly bolts throughout
- Mounting dimensions are interchangeable with most industry standard reducers
