5HP WEG 1750RPM 182/4T TEFC 3PH BRAKE MOTOR 00518ET3EBM184T-W22

5HP WEG 1750RPM 182/4T TEFC 3PH BRAKE MOTOR 00518ET3EBM184T-W22

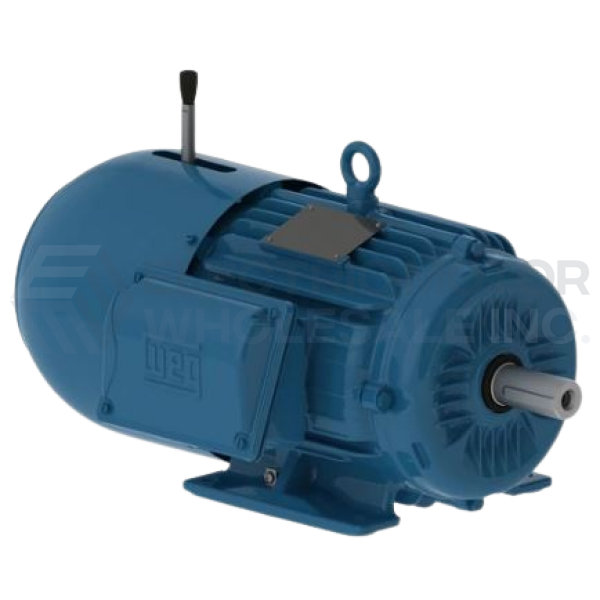

143-5T TEFC WB.jpg
Picture is for reference only.

Part Number:

00518ET3EBM184T-W22

Model/Spec Number:

13383436

Manufacturer:

WEG
00518ET3EBM184T-W22 WEG 5HP Three Phase Cast Iron Brakemotor consists of an induction motor coupled to an armature actuated brake. Brake is of sturdy construction with few moving parts which guarantees long durability and minimum maintenance.
MSRP: $2,291.00

Regular Price

USD

$

2,038

99

QTY
Login to View Discounts

Weight:

124 lbs

Dimensions:

19 x 26 x 19 inches

HS Code:

8501.52.4000

UPC:

7909322016412

Technical Details

Brand:

WEG

Application:

Brakemotor

Output HP:

5

Output KW:

3.7

Output RPM:

1750

Frame Size NEMA:

182/4T

Mount NEMA:

With Base

Enclosure NEMA:

IC411 - TEFC

Enclosure IEC:

IP55

Voltage:

230/460

Product Information Packet

WEG 3PH Cast Iron Brakemotor Brochure

WEG Three Phase Cast Iron Brakemotor consists of an induction motor coupled to an armature actuated brake. Brake is of sturdy construction with few moving parts which guarantees long durability and minimum maintenance.

Features

  • NEMA Premium efficiency rating
  • 1000:1 Variable Torque
  • 20:1 Constant Torque
  • Class F insulation (Impregnation Resin and Magnet wire are Class H)
  • 230VAC Brake Rectifier
  • F1 Mounted
  • Stainless Steel Nameplate - Laser etched with high contrast background
  • Regreasable ball bearings (Frames 254T and up)
  • 1.25 Service Factor
  • NPT Threaded terminal box
  • Manual Release
