...STEARNS 87000 Series Genuine Replacement Parts

/

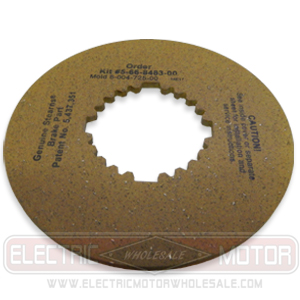

STEARNS 87000 Square Hub REV-A Friction Disc (30 Pack) 566847000

STEARNS 87000 Square Hub REV-A Friction Disc (30 Pack) 566847000


Part Number:

566847000

Model/Spec Number:

5-66-8470-00

Manufacturer:

Stearns Parts
5-66-8470-00 STEARNS 87000 Square Bore (30 Bulk Pack) Friction Disc

Technical Details

Stearns Series:

87000/87100/87700

Static Torque Lb.-ft.:

6-105

Coil Size:

#5, #6, #8

Enclosure NEMA:

NEMA2, NEMA4

Enclosure IEC:

IP23, IP54

Hub Bore Dia.:

ALL

Coil Voltage AC:

ALL

Coil Hz:

60//50

Release:

ALL

Endplate Material:

Aluminum, Cast Iron

87000 Product Packet

Stearns instruction on properly installing the 87000 series support plate.

Stearns YouTube Video: click here to view STEARNS 87000 SERIES Support Plate Factory Reset
