35FT-LB STEARNS 87000 Series NEMA2 460VAC Brake 1087041H0ELF

Part Number:

1087041H0ELF

Model/Spec Number:

1-087-041-H0-ELF

Manufacturer:

Stearns Obsolete

1-087-041-H0-ELF STEARNS 35 Ft-LB NEMA2 Mounting Brake is designed for industrial applications with high performance in a compact lightweight design.

Technical Details

Specifications

Stearns Series:	87000
Static Torque Lb.-ft.:	35
Coil Size:	#8
Enclosure NEMA:	NEMA2
Enclosure IEC:	IP23
Hub Bore Dia.:	E: 1-1/8"
Coil Voltage AC:	460//380
Coil Hz:	60//50
Release:	Pull Release
Endplate Material:	Aluminum

Documentation

87000 Product Packet

Additional Information

APPLICATIONS: NEMA Motor Mounting Brake

FEATURES:

Die cast aluminum endplate with stamped steel housing
Self-Adjusting Design
Lead Wire Length: 24 inches
Maximum Speed: Horizontal 4000 rpm, Vertical 3600RPM Mod Required
Coil Insulation: Class H Standard
Certified: CSA File LR-6254
ABS Type Approval Certified

Replacement Parts

35FT-LB STEARNS 87000 Series NEMA2 460VAC Brake 108704100ELF

MSRP: $1,498.50

Regular Price

$

1,283

74

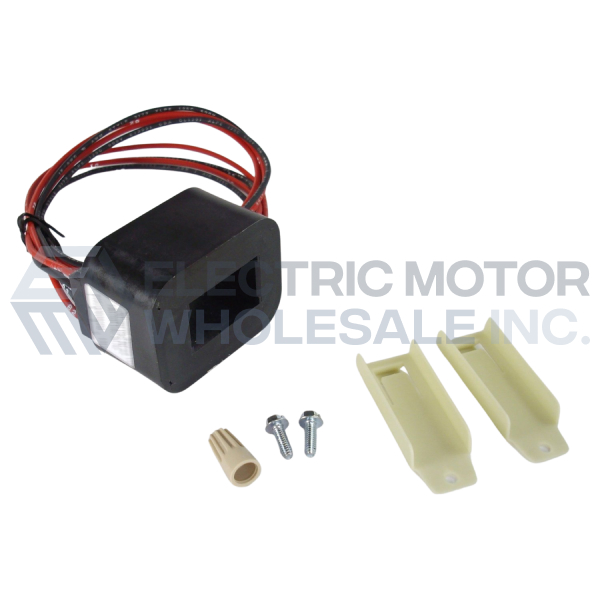

#8 STEARNS Injection Molded 460VAC Class-H Coil 596680967

MSRP: $768.83

Regular Price

$

428

00

STEARNS 87000 Series #8 AC Solenoid Kit 566508100

MSRP: $1,629.27

Regular Price

$

882

55

STEARNS 87000 Series REV-B 1-Friction Disc 566848300

MSRP: $318.54

Regular Price

$

162

00

STEARNS 87000/87700 Series Horizontal/Vertical Stationary Disc 566837200

MSRP: $358.65

Regular Price

$

194

27

STEARNS 87000 Series Horizontal-Vertical Pressure Plate 566857100

MSRP: $350.40

Regular Price

$

189

81

35, 75, 105FT-LB STEARNS 87000/87100 Series AC Support Plate 54270970008

MSRP: $3,096.92

Regular Price

$

1,385

00

6-35FT-LB STEARNS 87000 Series IP23 1-Disc Endplate 50270040130F

MSRP: $752.70

Regular Price

$

352

00

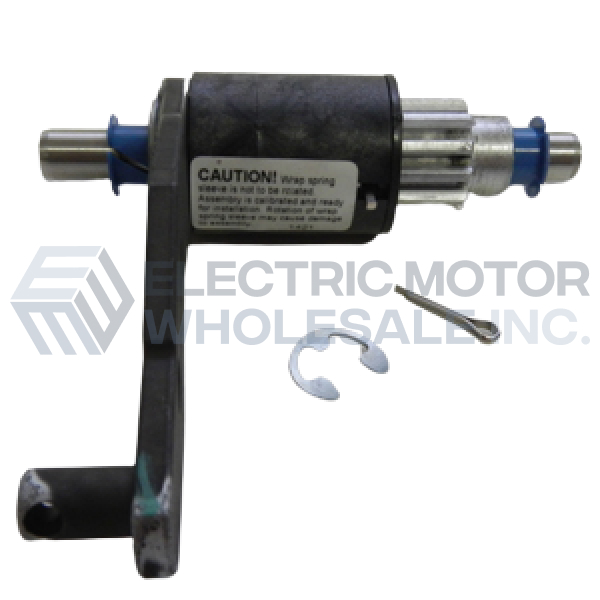

STEARNS 87000/87700 Solenoid Lever Pinion 566737100

MSRP: $613.48

Regular Price

$

332

32

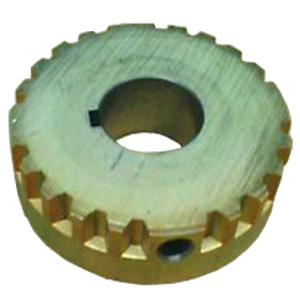

STEARNS 87000/87100 Series REV-B 1-Disc Hub 1-1/8" Bore 51672010001E

MSRP: $310.29

Regular Price

$

148

00
