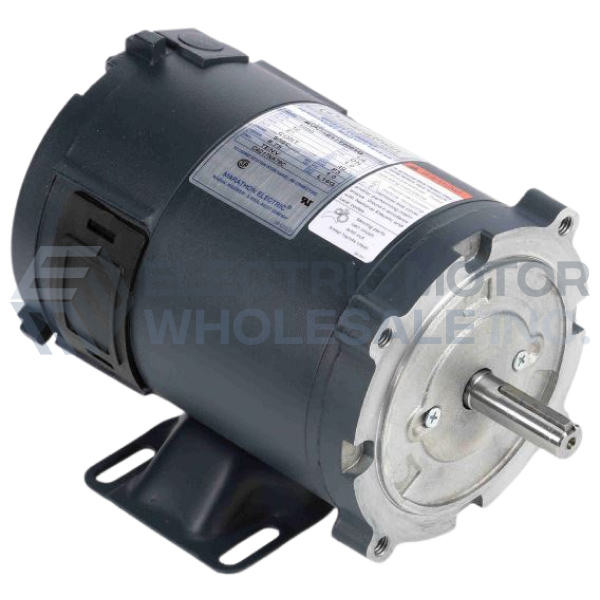

1/3HP MARATHON 1750RPM S56C TENV 24VDC PERMANENT MAGNET MOTOR Z663

1/3HP MARATHON 1750RPM S56C TENV 24VDC PERMANENT MAGNET MOTOR Z663

Picture is for reference only.

Part Number:

Z663

Model/Spec Number:

056E17T2003

Manufacturer:

Marathon Obsolete
Z663 MARATHON 1/3HP Low Voltage NEMA Frame DC Motor is designed specifically for battery, solar, or generator supplied applications. Dynamic braking and reversible rotation capabilities.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

25 lbs

Dimensions:

10 x 20 x 13 inches

HS Code:

8501.31.0000

UPC:

722856026071

Technical Details

Application:

General Purpose

Output HP:

1/3

Output KW:

0.25

Output RPM:

1750

Frame NEMA:

S56C

Mount NEMA:

C-Face With Base

Input Voltage DC:

24

Full Load Amps:

13.5

Winding:

Permanent Magnet

Enclosure NEMA:

TENV

Product Information Packet
