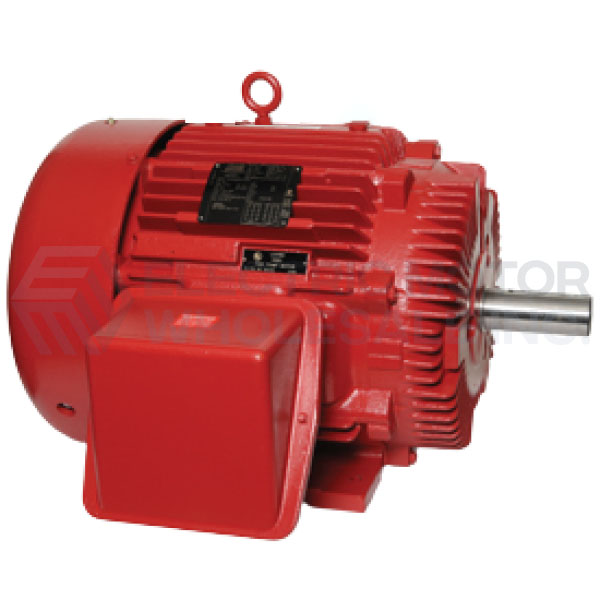

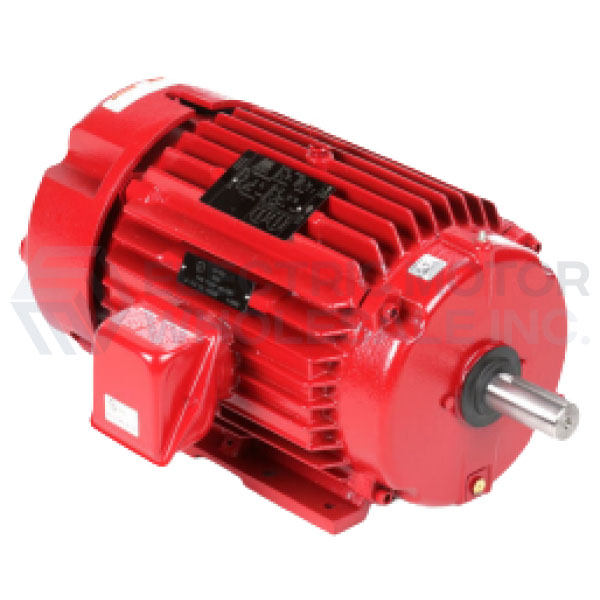

50HP MARATHON 1800RPM 326TS 230/460V TEFC 3PH MOTOR Y1620
50HP MARATHON 1800RPM 326TS 230/460V TEFC 3PH MOTOR Y1620
Part Number:
Y1620Manufacturer:
Marathon ObsoleteManufacturer Part Number:
Y1620Click below to request an agent review potential options.
Shipping Details
Dimensions:
12 x 20 x 12 inchesTechnical Details
Specifications
Application: | Fire Pump |
Output HP: | 50 |
Output RPM: | 1300-1800 (4P) |
Frame Size NEMA: | 324-6TS |
Mount NEMA: | With Base |
Enclosure NEMA: | TEFC |
Voltage: | 230, 230/460, 460 |
Frequency (Hz): | 50, 60 |
Efficiency: | IE1: Standard, IE2: High Eff. |
Thermal Protection: | None |
Documentation
Additional Information
| Catalog Number: | Y1620 |
| Description: | 50HP,1800RPM,326TS,230/460V,TEFC,3PH,60HZ,FIRE PUMP |
| Ship Weight: | 675 lbs. |
This Marathon motor has factory lead times of approximately 5-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.
This Marathon Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.
APPLICATIONS: For use on pumps designed for fire pump duty and installed per NFPA-20. Fire Pump motors are not recommended for use with variable frequency drives.
FEATURES:
- UL File EX5190, CSA File LR2025 and CE Mark
- Ball bearings
- 1.15 Service Factor
- Red paint exterior
- NEMA Design B, Code G or less
- Dual voltage motors have 12 leads, suitable for wye-delta or across the line start on either voltage, or part winding start on low voltage
- Will accept C-Face kits
- Efficiency levels meet EISA requirements
