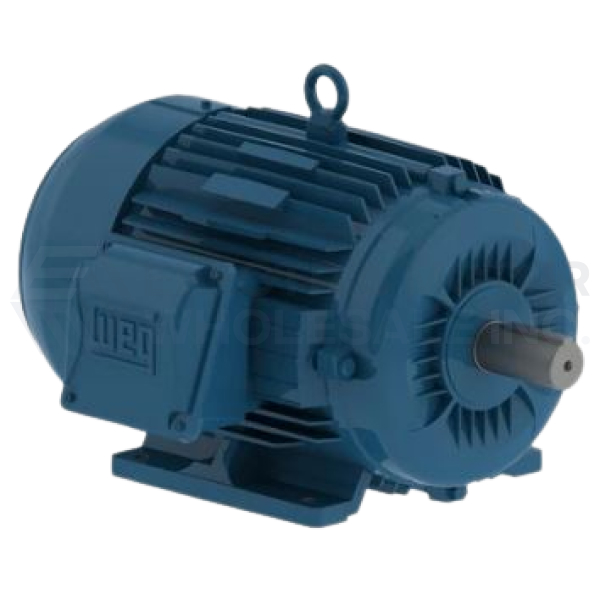

10HP WEG 1765RPM 213/5T TEFC 3PH MOTOR 01018ET3E215T-W22

WEG Three Phase General Purpose Cast Iron Motor with cast iron frame, flexible mounting, solid feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Features:

• NEMA Premium efficiency rating
• Rated for IEEE45 and USCG 259 - Marine Duty
• Suitable for VFD operation as per NEMA MG1
  • Variable Torque: 1000:1
  • Constant Torque: 20:1
• Division 2 Explosion Proof Ratings:
  • Certified Class 1 Div 2: Groups A, B, C, & D
  • Certified Class 2 Div 2: Groups F & G
• 1 3/8" Keyed output shaft
• Dual rated 60/50Hz (190-220/380-415V @ 50Hz)
• Class F inverter rated insulation system (impregnation resin and magnet wire are insulation Class H)
• Optimized ventilation system for cooler operation and extended life
• High Grade FC200 cast iron provides superior mechanical strength and heat dissipation
• Exclusive WEG painting system exceeds 200hrs ASTM 117 corrosion test (exceeds IEEE 841 standard)
• Balanced to 0.08 inches per second vibration limits (meets IEEE 841 standard)
• F1 mounting as standard, F2 convertible
• Four bolt conduit cover with glued neoprene gasket
• Stainless steel nameplate (laser etched with high contrast background)
• Corrosion proof drains
