105FT-LB STEARNS 87000 Series NEMA2 No Hub 115/230VAC Brake 108708100-PF

105FT-LB STEARNS 87000 Series NEMA2 No Hub 115/230VAC Brake 108708100-PF

Picture is for reference only.

Part Number:

108708100 PF

Model/Spec Number:

1-087-081-00-PF

Manufacturer:

Stearns Brakes

Manufacturer Part Number:

108708100 PF
1-087-081-00-PF STEARNS 105 Ft-LB NEMA2 115/230VAC Mounting Brake "HUB NOT INCLUDED" is designed for industrial applications with high performance in a compact lightweight design.

Ordering Notes

STEARNS Products are normally stocked, but 10-15 day lead times may apply. Please do not order expedited shipping without contacting our sales office for stock and availability.

Informational Item

This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.

Weight:

33 lbs

Dimensions:

16 x 14 x 12 inches

HS Code:

8505.20.0000

UPC:

662327173579

Technical Details

Stearns Series:

87000

Static Torque Lb.-ft.:

105

Coil Size:

#8

Enclosure NEMA:

NEMA2

Enclosure IEC:

IP23

Hub Bore Dia.:

Not Included

Coil Voltage AC:

115/230//95/190

Coil Hz:

60//50

Release:

Pull Release

Endplate Material:

Aluminum

87000 Product Packet

APPLICATIONS: NEMA Motor Mounting Brake

FEATURES:

  • Die cast aluminum endplate with stamped steel housing
  • Self-Adjusting Design
  • Hub Not Included
  • Lead Wire Length: 24 inches
  • Maximum Speed: Horizontal 4000 rpm, Vertical 3600RPM Mod Required
  • Coil Insulation: Class H Standard
  • Certified: CSA File LR-6254
  • ABS Type Approval Certified
Image for 105FT-LB STEARNS 87000 Series NEMA2 115/230VAC Brake 108708100DPF

105FT-LB STEARNS 87000 Series NEMA2 115/230VAC Brake 108708100DPF

Image for 105FT-LB STEARNS 87000 Series NEMA2 115/230VAC Brake 108708100EPF

105FT-LB STEARNS 87000 Series NEMA2 115/230VAC Brake 108708100EPF

Image for 105FT-LB STEARNS 87000 Series NEMA2 115/230VAC Brake 108708100FPF

105FT-LB STEARNS 87000 Series NEMA2 115/230VAC Brake 108708100FPF

Image for 105FT-LB STEARNS 87000 Series NEMA2 115/230VAC Brake 108708100GPF

105FT-LB STEARNS 87000 Series NEMA2 115/230VAC Brake 108708100GPF

Image for 105FT-LB STEARNS 87000 Series NEMA2 115/230VAC Brake 108708100HPF

105FT-LB STEARNS 87000 Series NEMA2 115/230VAC Brake 108708100HPF

Image for 105FT-LB STEARNS 87000 Series NEMA2 115/230VAC Brake 108708100MPF

105FT-LB STEARNS 87000 Series NEMA2 115/230VAC Brake 108708100MPF

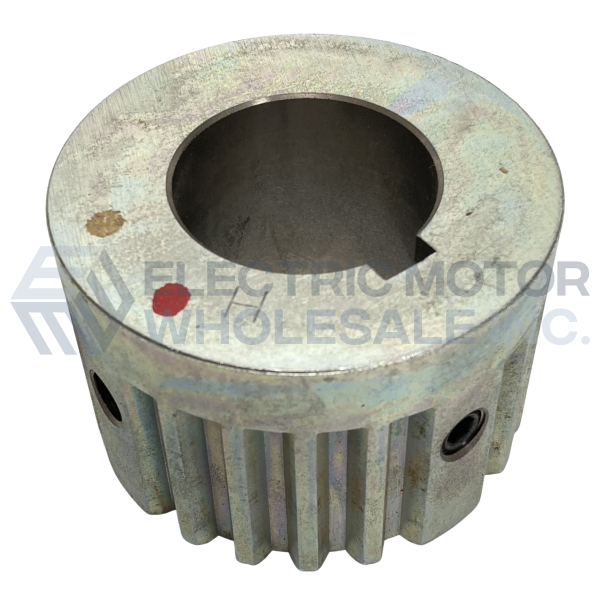

Image for Stearns 87000/87100 Series REV-B 3-Disc Hub 5/8" Bore 51672030001B
