STEARNS 87000 Series Genuine Replacement Parts

/

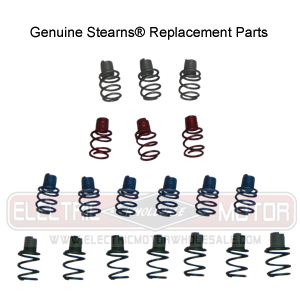

STEARNS 87000 Series Vertical Spring Kit 566317600

STEARNS 87000 Series Vertical Spring Kit 566317600

Picture is for reference only.

Part Number:

566317600

Model/Spec Number:

5-66-3176-00

Manufacturer:

Stearns Parts
5-66-3176-00 STEARNS 87000 Series Vertical Mount Spring Kit

Ordering Notes

Non Returnable. STEARNS Products are normally stocked, but 10-15 day lead times may apply. Please do not order expedited shipping without contacting our sales office for stock and availability.

Informational Item

This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.

Weight:

1 lb

Dimensions:

6 x 6 x 3 inches

HS Code:

6813810050

UPC:

793699023329

Technical Details

Stearns Series:

87000, 87100

Static Torque Lb.-ft.:

6-105

Enclosure NEMA:

NEMA2, NEMA4

Enclosure IEC:

IP23, IP55

Endplate Material:

Aluminum, Cast Iron

Mount Orientation:

Vertical Up/Down

Application:

General Purpose

Vert Mount Service Instructions

87000 Product Packet

Stearns instruction on properly installing the 87000 series support plate.

Stearns YouTube Video: click here to view STEARNS 87000 SERIES Support Plate Factory Reset
