30HP MARATHON 3552RPM 284JM DP 3PH MOTOR U108A

30HP MARATHON 3552RPM 284JM DP 3PH MOTOR U108A

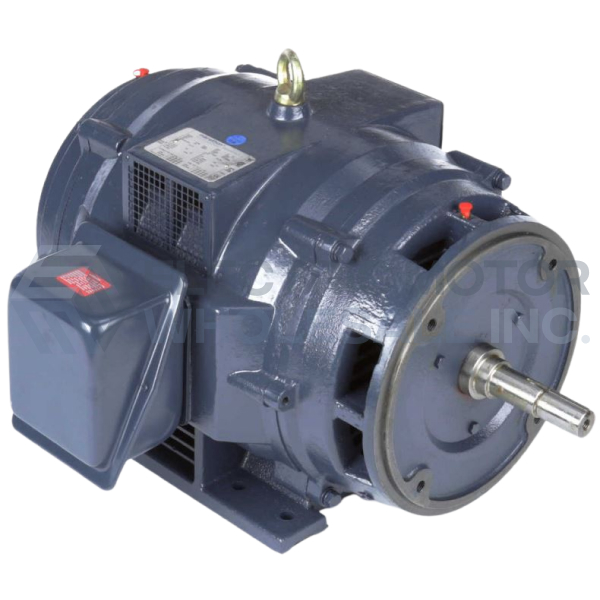

Picture is for reference only.

Part Number:

U108A

Model/Spec Number:

284TTDN16009

Manufacturer:

Marathon Obsolete
U108A MARATHON 30HP Three Phase DP Close-Coupled JM Pump Motor designed for use with Close-coupled pumps where the pump impeller is mounted directly on the motor shaft in environments that are relatively clean and dry.

Item Discontinued

Click below to request an agent review potential options.

Weight:

325 lbs

Dimensions:

25 x 32 x 23 inches

HS Code:

8501.52.0000

UPC:

722856067425

Technical Details

Brand:

Marathon

Application:

Closed Coupled

Output HP:

30

Output KW:

22.4

Output RPM:

3552

Frame Size NEMA:

284JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

DP

Enclosure IEC:

IP23

Voltage:

200

Product Information Packet
