1.5HP MARATHON 1740RPM 90S IP43 B34 3PH GLOBETROTTER IEC MOTOR R376

1.5HP MARATHON 1740RPM 90S IP43 B34 3PH GLOBETROTTER IEC MOTOR R376

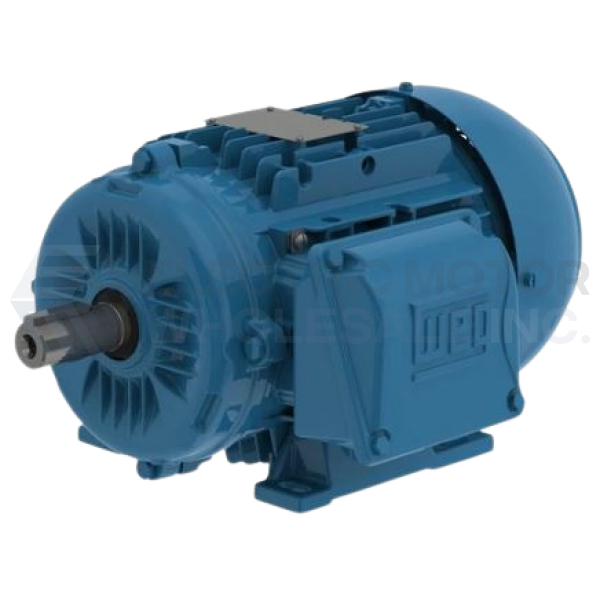

Picture is for reference only.

Part Number:

R376

Model/Spec Number:

090ST17FH5417

Manufacturer:

Marathon Obsolete
R376 MARATHON 1.5HP Globetrotter IEC Motor is designed for use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

42 lbs

Dimensions:

12 x 16 x 14 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Marathon

Application:

General Purpose

Output HP:

1.5

Output KW:

1.1

Output RPM:

1740

Frame Size IEC:

90S

Mount IEC:

B3/B14 Foot/C Face

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230/460//200/400

Product Information Packet

APPLICATIONS: For use on fans, pumps, compressors, conveyors, and other equipment requiring IEC dimensions and electrical standards. The Globetrotter is not only designed to International standards but meets NEMA performance and efficiency standards making it suitable for requirements worldwide.

FEATURES:

  • B14 "FT" (C-Face) mounting
  • Meets IE3 European and NEMA Premium® efficiencies
  • MAX GUARD® Class F Insulation, Class B rise @ rated KW
  • Rotatable/Removable Base (63-90 frame)
  • Top Mounted/Oversized gasketed terminal box
  • Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty (Below Deck)
  • 1.15 Service Factor on 60 Hz sine wave, 1.0 SF or VFD
  • IEC Design “N” with NEMA “B” Torques
  • Terminal Blocks, Stud Type, Zero Creepage
  • Meets IEC 34 electrical standards
  • Meets IEC 72 dimensions and tolerances
  • CE Marked
