Electric Motors

/

Discontinued Electric Motors

/

Marathon Discontinued Motors

/

2HP MARATHON 1173RPM 184T TEFC 3PH GLOBETROTTER BRAKE MOTOR K444

2HP MARATHON 1173RPM 184T TEFC 3PH GLOBETROTTER BRAKE MOTOR K444

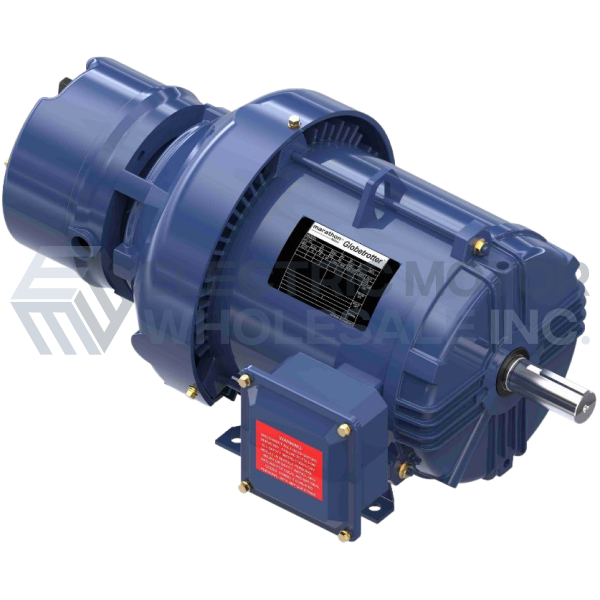

182T TEFC WB BM.jpg
Picture is for reference only.

Part Number:

K444

Model/Spec Number:

184TTFBD6378

Manufacturer:

Marathon Obsolete
K444 MARATHON 2HP Three Phase Globetrotter Totally Enclosed Brake motor is designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to request an agent review potential options.

Weight:

136 lbs

Dimensions:

26 x 34 x 22 inches

HS Code:

8501.52.4000

UPC:

722856212023

Technical Details

Brand:

Marathon

Application:

Brakemotor

Output HP:

2//1.5

Output KW:

1.5//1.1

Output RPM:

1173//977

Frame Size NEMA:

184T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230/460//190/380

Product Information Packet

APPLICATIONS: Brake motor designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

FEATURES:

  • Fail-safe, spring set Stearns 56,000 Series brake for holding or stopping
  • Meets or exceeds NEMA Premium® efficiencies
  • NEMA Premium models are in compliance with EISA2007
  • Class F Insulation System
  • Dynamically balanced rotors
  • Steel conduit box
  • Dual Frame Mounting
  • Modifications and Kits are available
  • 40°C Ambient 1.15SF Sine Wave Power and 1.0SF inverter power
  • UL®* listed, UL certified for Canada and CE®* mark

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
