GT1854 MARATHON 1.5HP 3-PHASE GLOBETROTTER MOTOR 145TTFBD6039

Electric Motors

Discontinued Electric Motors

Marathon Discontinued Motors

1.5HP MARATHON 1750RPM 145T TEFC 200V 3PH GLOBETROTTER MOTOR GT1854

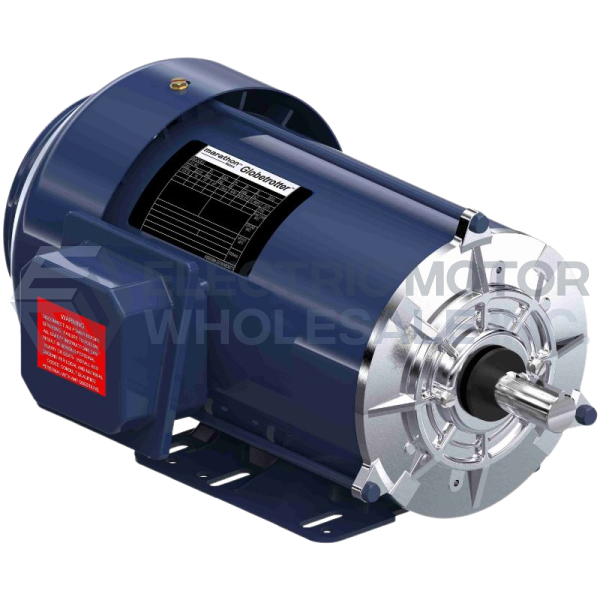

Picture is for reference only.

Part Number:

GT1854

Model/Spec Number:

145TTFBD6039

Manufacturer:

Regal Rexnord Commercial

GT1854 MARATHON 1.5HP Three Phase TEFC Globetrotter NEMA Premium Efficiency Motor used on compressors, pumps, conveyors, blowers, and other machinery in environments that are relatively clean and dry.

Ordering Notes

Discontinued item with limited availability, subject to prior sale. Non-Returnable.

Item Discontinued

Click below to request an agent review potential options.

Shipping Details

Weight:

47 lbs

Dimensions:

14 x 20 x 12 inches

HS Code:

8501.32.2000

UPC:

722856205117

Technical Details

Specifications

Brand:	Marathon
Application:	General Purpose
Output HP:	1.5
Output KW:	1.1
Output RPM:	1750
Frame Size NEMA:	145T
Mount NEMA:	With Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP43
Voltage:	200

Documentation

Product Information Packet

Additional Information

APPLICATIONS: General purpose Globetrotter NEMA Premium Efficiency used on compressors, pumps, conveyors, blowers, and other machinery in environments that are relatively clean and dry. Substantial energy savings can be realized when using these high efficiency motors. Guaranteed efficiencies offer an eXtra Return on your Investment when using these premium efficiency motors on high cycle or long run time applications.

FEATURES:

Meets or exceeds NEMA Premium® efficiencies
NEMA Premium models are in compliance with EISA2007
Class F Insulation System
Dynamically balanced rotors
Steel conduit box
Dual Frame Mounting
Modifications and Kits are available
UL®* listed, UL certified for Canada and CE®* mark

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
