GT0815 MARATHON 7.5HP 3PH GLOBETROTTER MOTOR 184TTDBD6000

Electric Motors

Discontinued Electric Motors

Marathon Discontinued Motors

7.5HP MARATHON 3510RPM 184T DP 200VAC 3PH GLOBETROTTER MOTOR GT0815

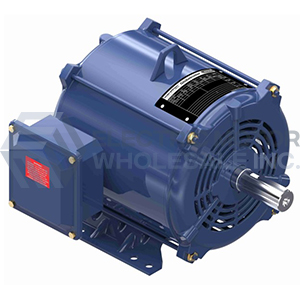

Picture is for reference only.

Part Number:

GT0815

Model/Spec Number:

184TTDBD6000

Manufacturer:

Marathon Obsolete

GT0815 MARATHON 7.5HP Three Phase DP Globetrotter NEMA Premium Efficiency Motor used on compressors, pumps, conveyors, blowers, and other machinery in environments that are relatively clean and dry.

Ordering Notes

This is a discontinued product with no direct replacement from the manufacturer.

Item Discontinued

Click below to request an agent review potential options.

Shipping Details

Weight:

98 lbs

Dimensions:

24 x 26 x 22 inches

HS Code:

8501.52.4000

UPC:

722856201928

Technical Details

Specifications

Brand:	Marathon
Application:	General Purpose
Output HP:	7.5
Output KW:	5.5
Output RPM:	3510
Frame Size NEMA:	184T
Mount NEMA:	With Base
Enclosure NEMA:	DP
Enclosure IEC:	IP22
Voltage:	200

Documentation

GT0815 Data Sheet

Additional Information

APPLICATIONS: General purpose Globetrotter NEMA Premium Efficiency used on compressors, pumps, conveyors, blowers, and other machinery in environments that are relatively clean and dry. Substantial energy savings can be realized when using these high efficiency motors. Guaranteed efficiencies offer an eXtra Return on your Investment when using these premium efficiency motors on high cycle or long run time applications.

FEATURES:

Meets or exceeds NEMA Premium® efficiencies
Class F insulation
Dual frame mounting holes

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
