1/2HP MARATHON 1735RPM 56C TENV 3PH MOTOR Y534

Product Overview

Y534 MARATHON 1/2HP Three Phase Black Max Inverter (Vector) Duty motor is designed for use with material handling, machine tools, conveyors, crane and hoist, metal processing, test stands, pumps compressors, textile processing, and other industrial machinery installed in dusty or dirty environments.

Part Number:

Y534

Model/Spec Number:

056H17T5301

Manufacturer:

Regal Rexnord Commercial

Manufacturer Part Number:

Y534

Technical Details

Specifications

Brand	Marathon
Application	Vector Duty
Output HP	1/2
Output KW	0.37
Output RPM	1735
Frame Size NEMA	56C

Documentation

Product Information Packet

Additional Information

APPLICATIONS: Designed for inverter or vector applications where up to a 1000:1 Constant Torque speed range is required. Typical uses include: material handling, machine tools, conveyors, crane and hoist, metal processing, test stands, pumps compressors, textile processing, and other industrial machinery installed in dusty or dirty environments.

FEATURES:

MAX GUARD® Class F insulation system
Constant Torque operation from 0 to base speed on Vector Drive
Constant Horsepower operation up to twice base RPM
Continuous duty at 40ºC ambient
Optimized for operation with IGBT inverter (NEMA Design A)
Normally closed thermostats (one per phase, Class F)
Bolt-on removable base for footless mounting option
Ball Bearings

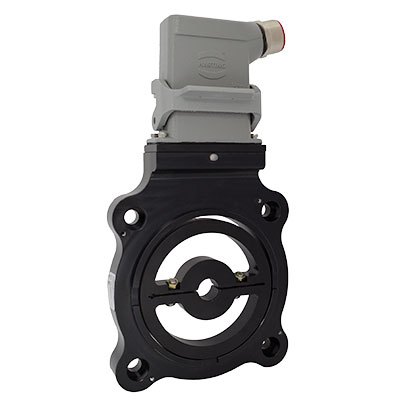

Encoder and brake provisions included on opposite drive end (maximum 10 lb-ft brake)
UL Recognized, CSA Certified, and CE Mark
Three year warranty
