30HP MARATHON 1773RPM 286T TEFC 3PH MOTOR W567

30HP MARATHON 1773RPM 286T TEFC 3PH MOTOR W567

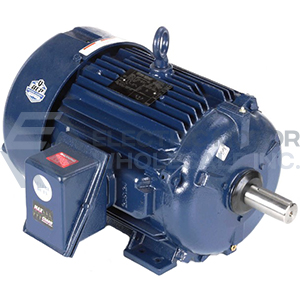

256T TEFC.jpg
Picture is for reference only.

Part Number:

W567

Model/Spec Number:

286THFNA9026

Manufacturer:

Marathon Obsolete
W567 MARATHON 30HP Three Phase XRI IEEE-841 Blue Chip Severe / Automotive Duty Premium Motor is designed for extreme applications in the process industries such as chemical plants, pulp and paper mills, refineries, above-ground mines, food processing, foundries, and other severe duty environments.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

558 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.52.0000

UPC:

722856021397

Technical Details

Brand:

Marathon

Application:

Severe Duty

Output HP:

30

Output KW:

22.4

Output RPM:

1773

Frame Size NEMA:

286T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP56

Voltage:

460
