7.5HP MARATHON 1770RPM 213T 3PH BLUE CHIP SEVERE DUTY COOLING TOWER MOTOR U869A

7.5HP MARATHON 1770RPM 213T 3PH BLUE CHIP SEVERE DUTY COOLING TOWER MOTOR U869A

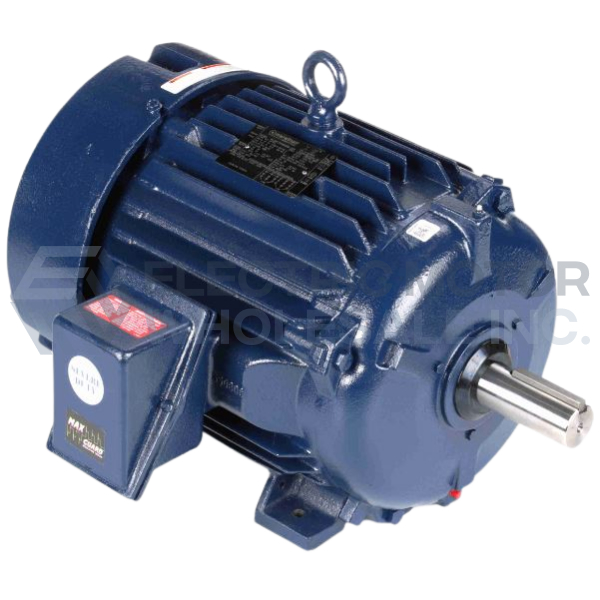

Picture is for reference only.

Part Number:

U869A

Model/Spec Number:

213TTFN6550

Manufacturer:

Marathon Obsolete
U869A MARATHON 7.5HP Three Phase Blue Chip Cooling Tower Electric Motor is designed for cooling towers, fans and blowers, and other severe duty environments and applications that demand long life, ultra-high efficiency, dependability, and corrosion protection for long motor life.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

149 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.52.8040

UPC:

722856018816

Technical Details

Brand:

Marathon

Application:

Cooling Tower

Output HP:

7.5

Output KW:

5.6

Frame Size NEMA:

213T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

230/460//190/380

Frequency (Hz):

60//50
