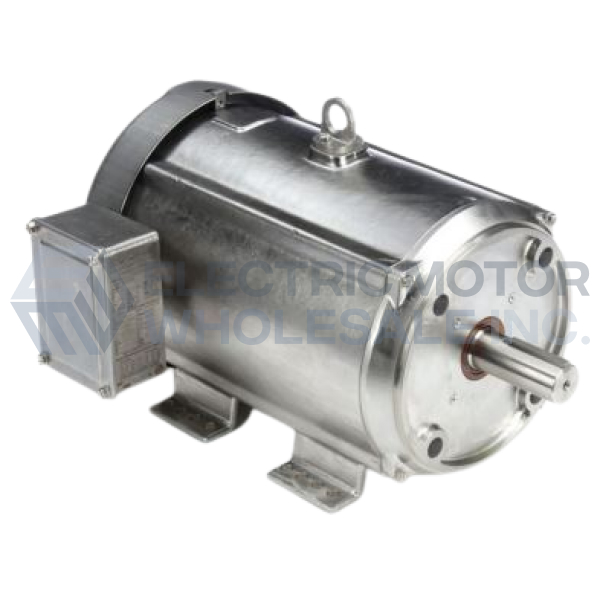

10HP MARATHON 1760RPM 215TC TEFC 3PH SXT STAINLESS WASHDOWN MOTOR N409

APPLICATIONS: Built with all stainless steel external components to prevent corrosion and well sealed against moisture and condensation to protect internal components, this all-stainless motor is able to withstand the sever wash-down environments found in the food processing, chemical processing and beverage industries. Motor is BISSC certified for baking industries.

FEATURES:

• MAX GUARD® Class F insulation system
• 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
• Double sealed ball bearings with moisture resistant, high temperature grease
• 300 Series Stainless steel external construction: frame, endshields, shaft,
  conduit box, mounting base and hardware for superior corrosion resistance
• Internal corrosion resistant coatings on rotor and heavy polyester varnish on the stator
• 100% Paint-free construction
• Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals
• Hydrophobic breather in OP endshield and conduit box equalize air pressure
• Nameplate information laser etched on frame
• BISSC Certified for baking industry
• UL Recognized, CSA Certified and CE Mark

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
