1.5HP MARATHON 3600RPM 56HC TEFC 1PH SXT-PLUS WASHDOWN MOTOR N286

1.5HP MARATHON 3600RPM 56HC TEFC 1PH SXT-PLUS WASHDOWN MOTOR N286

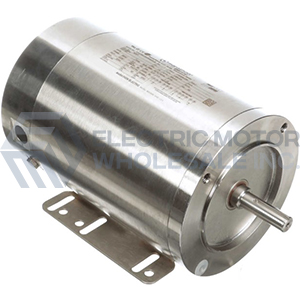

TENV SXT PLUS 56HC.jpg

Part Number:

N286

Model/Spec Number:

056B34W5301

Manufacturer:

Marathon Obsolete
N286 MARATHON 1.5HP PowerWash SXT-Plus Washdown Duty Motor built with all stainless steel external components to prevent corrosion and well sealed against moisture and condensation to protect internal components, the WASHGUARD SST all-stainless motor is able to withstand the sever wash-down environments found in the food processing, chemical processing and beverage industries.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

51 lbs

Dimensions:

13 x 20 x 13 inches

HS Code:

8501.40.6040

UPC:

722856030504

Technical Details

Application:

Washdown Stainless

Output HP:

1.5

Output KW:

1.1

Output RPM:

3450

Frame NEMA:

56HC

Mount NEMA:

C-Face With Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP55

Voltage:

115/208-230

Frequency (Hz):

60

Product Information Packet
