200HP MARATHON 3600RPM 444HP 460V DP 3PH MOTOR M857A
200HP MARATHON 3600RPM 444HP 460V DP 3PH MOTOR M857A
Product Overview

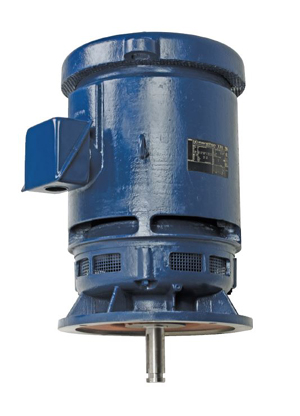

MARATHON M857A, 200HP P-Base Vertical Solid Shaft Pump Motor is for use on vertical end suction, short couple, centrifugal, non-clog, mix flow, turbine, and propeller pumps. HP type shafts, per NEMA MG-1 18.625. HPH and TCV type shafts, single phase, and other modifications such as adding screens are also available through special order.Part Number:
M857AManufacturer:
Marathon ObsoleteManufacturer Part Number:
M857ATechnical Details
Specifications
Application | DNU5 |
Output HP | 200 |
Output RPM | 1900-4000 (2P) |
Frame Size NEMA | 444-9HP |
Mount NEMA | P Base Normal |
Enclosure NEMA | DP, ODP, OPEN |
Additional Information
| Catalog Number: | M857A |
| Catalog Number: | 444TTDS14003 |
| Description: | 200HP,3600RPM,444HP,460V,DP,3PH,60HZ |
| Ship Weight: | 1357 lbs. |
APPLICATIONS: For use on vertical end suction, short couple, centrifugal, non-clog, mix flow, turbine, and propeller pumps. HP type shafts, per NEMA MG-1 18.625. HPH and TCV type shafts, single phase, and other modifications such as adding screens are also available through special order.
FEATURES:
- Cast Iron Frame
- UL Listed for Fire Pump applications
- Normal and Medium thrust
- EPAct efficiency
- Ball bearings and angular contact bearings for medium thrust applications
- Class B insulation
- 1.15 Service Factor
- Heavy duty lifting lugs
- Drip cover/canopy cap included
- UL Recognized and CSA Certified
- Efficiency levels meet EISA requirements
