KG215 MARATHON 1/3HP 3PH PUMP MOTOR 5K35FN55

Electric Motors

Discontinued Electric Motors

Marathon Discontinued Motors

1/3HP MARATHON 3450RPM 56C DP 3PH PUMP MOTOR KG215

Picture is for reference only.

Part Number:

KG215

Model/Spec Number:

5K35FN55

Manufacturer:

Marathon Obsolete

KG215 MARATHON 1/3HP Three Phase DP Centrifugal Fan Motor is a direct drive centrifugal fan installed in relatively clean and dry applications.

Item Discontinued

Click below to request an agent review potential options.

Shipping Details

Weight:

14 lbs

Dimensions:

7 x 13 x 8 inches

HS Code:

8501.51.4000

UPC:

722856049315

Technical Details

Specifications

Brand:	Marathon
Application:	Jet Pump
Output HP:	1/3
Output KW:	0.25
Output RPM:	3450
Frame Size NEMA:	56C
Mount NEMA:	C Face No Base
Enclosure NEMA:	DP
Enclosure IEC:	IP22
Voltage:	208-230/460

Documentation

Product Information Packet

Additional Information

FEATURES:

Double sealed ball bearings, echanically locked on shaft end
1.75 Service Factor
NEMA 56C direct mounting
Continuous Duty
56C = carbon steel shaft with key
Drip cover not included
UL Recognized, CSA Certified, CE mark

Related Products

1/3HP MARATHON 3450RPM 56C DP 3PH FLEX-IN-1 MOTOR FX13BK001

MSRP: $712.00

Regular Price

368

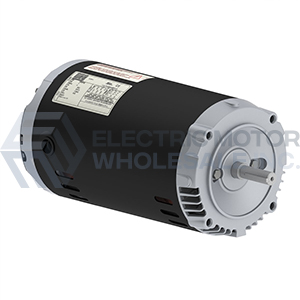

1/3HP WEG 3520RPM 56C ODP 3PH MOTOR .3336OT3E56CFL-S
