1.5HP MARATHON 1750RPM 145TC DP 3PH MOTOR K622A
1.5HP MARATHON 1750RPM 145TC DP 3PH MOTOR K622A

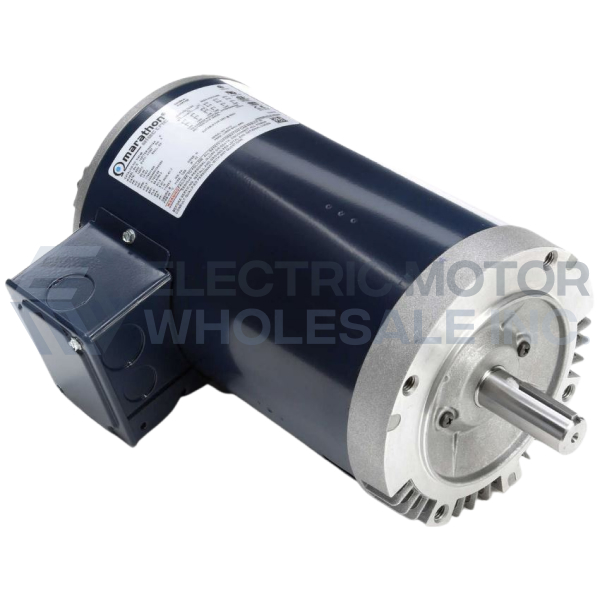

Picture is for reference only.
Part Number:
K622AModel/Spec Number:
145TTDR14049Manufacturer:
Marathon ObsoleteClick below to view suggested functional replacement.
Shipping Details
Weight:
40 lbsDimensions:
12 x 12 x 12 inchesHS Code:
8501.52.4000UPC:
722856011824Technical Details
Specifications
Brand: | Marathon |
Application: | General Purpose |
Output HP: | 1.5 |
Output KW: | 1.1 |
Output RPM: | 1750 |
Frame Size NEMA: | 145TC |
Mount NEMA: | C Face No Base |
Enclosure NEMA: | DP |
Enclosure IEC: | IP22 |
Voltage: | 230/460 |
Documentation
Additional Information
| Phase | 3 | Insulation Class | F |
|---|---|---|---|
| Frame | 145TC | Duty | CONTINUOUS |
| Enclosure | DP | Ambient | 40 |
| Mounting | C-Face Footless | NEMA Design | B |
| Orientation | HORIZONTAL | Starting Type | ACROSS THE LINE |
| Assembly | F1 ONLY | KVA Code | M |
| Drive End Bearing | BALL | IP Code | 22 |
| Opposite End Bearing | BALL | ||
| Drive End Bearing Size | 6205 | ||
| Opposite End Bearing Size | 6203 | ||
| Weight | 38 LB lbs | ||
| CE | Y | CSA | Y |
| UL | Recognized Construction | ||
| Thermal Protection | |||
