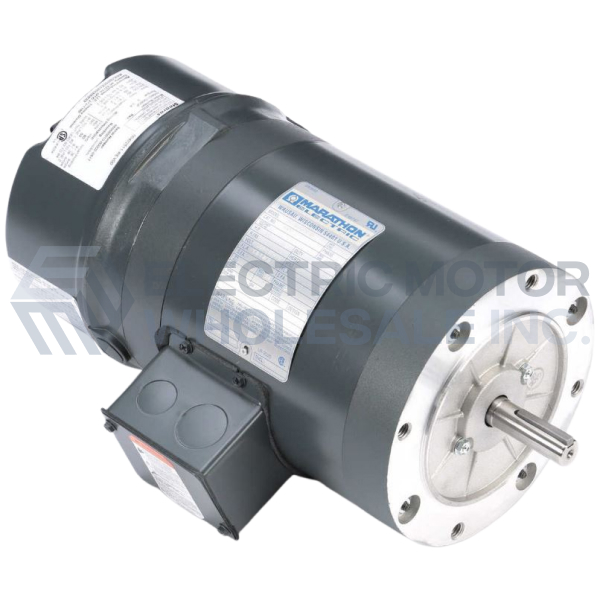

1HP MARATHON 1725RPM 143TC TENV 3PH BRAKE MOTOR K462

APPLICATIONS: Brake motor designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

FEATURES:

• C-Face Footless
• Totally Enclosed, Non-Ventilated
• Fail-safe, spring set Stearns 56 Series brake for holding or stopping
• Manual release lever on rear of brake housing
• Brake leads are terminated at the brake
• Universal mounting, no modifications needed
• Brake coil voltage matches motor voltages, see mod section for other brake coils
• Ball bearings, mechanically locked on shaft end
• 1.0 Service Factor
• UL Recognized and CSA Certified
• Brake has manual wear adjustment for longer pad life
• Brake leads routed through motor conduit box (TENV only)
• Universal mounting, no modifications needed
• CR200 Corona resistant magnet wire (motor can be operated 10:1 variable torque)

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
