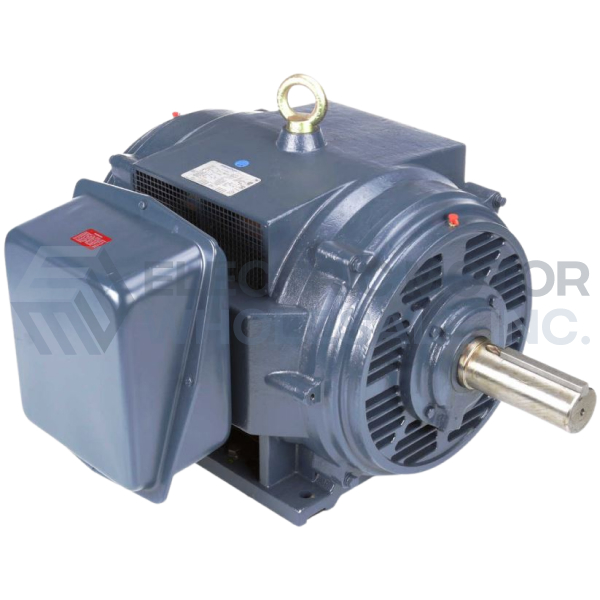

100HP MARATHON 1788RPM 404T DP 3PH MOTOR GT0046

APPLICATIONS: General purpose Globetrotter NEMA Premium Efficiency used on compressors, pumps, conveyors, blowers, and other machinery in environments that are relatively clean and dry. Substantial energy savings can be realized when using these high efficiency motors. Guaranteed efficiencies offer an eXtra Return on your Investment when using these premium efficiency motors on high cycle or long run time applications.

FEATURES:

• Dripproof
• 2 7/8" output shaft diameter
• Accepts C-Face kit catalog number A415
• Meets or exceeds NEMA Premium® efficiencies NEMA Premium® models are in compliance with EISA2007
• 12 Leads for WYE-DELTA, Part Winding on low voltage, or across-the-line starting
• Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque, 1.0 SF
• This Marathon Motor efficiency meets EISA requirements
• 1.15 Service Factor
• Class F Insulation
• Standard assembly F1, reversible to F2 assembly
• UL Recognized, CSA Certified, CE Mark

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
