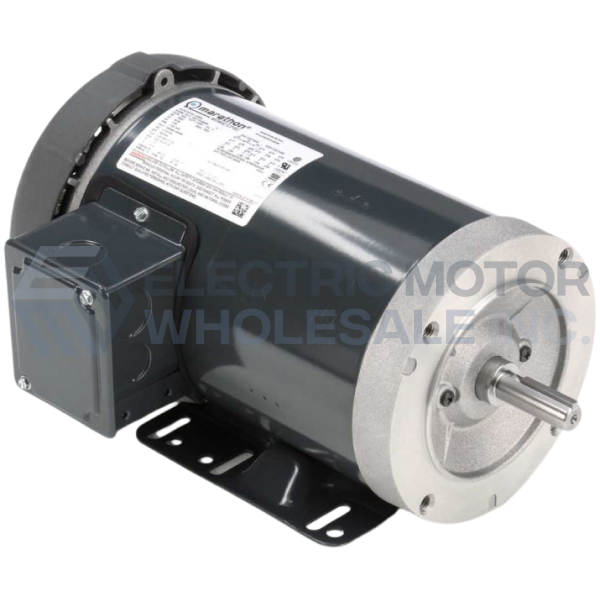

2HP MARATHON 1725RPM 56HC TEFC 3PH MOTOR G585

APPLICATIONS: General purpose use on gear reducers, pumps, machine tools, and other direct-coupled equipment installed in damp, dusty, or dirty environments.

FEATURES:

• Ball bearings, mechanically locked on shaft end
• Class F Insulation
• 1.15 Service Factor
• 10:1 constant speed range
• Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
• F1 Mounting only, cannot reassemble to F2
• 56H, 143T, and 145T Combination Base with 12 mounting holes
• Accept brake kits
• UL Recognized and CSA Certified

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
