1.5HP MARATHON 1725RPM 56HC TEFC 3PH XRI MOTOR G584A

1.5HP MARATHON 1725RPM 56HC TEFC 3PH XRI MOTOR G584A

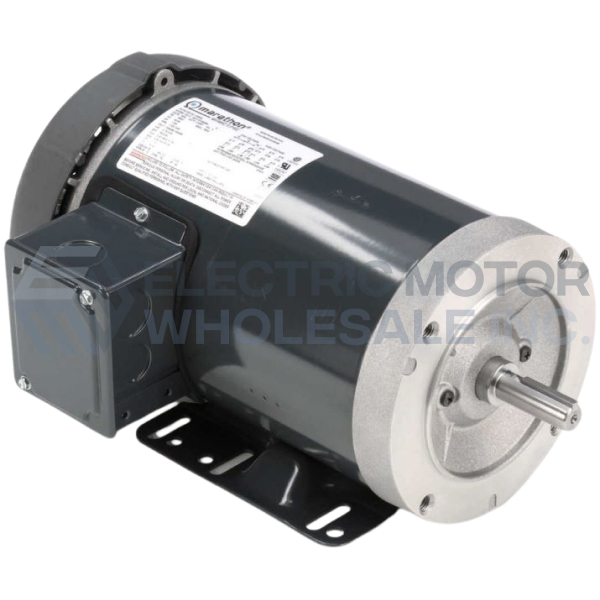

56HC TEFC WB v1.jpg
Picture is for reference only.

Part Number:

G584A

Model/Spec Number:

056T17F15641

Manufacturer:

Marathon Obsolete
G584A MARATHON 1.5HP Three Phase Totally Enclosed General Purpose Removable Base Motor designed for use on pumps, fans, blowers, compressors, conveyors, and other industrial machinery installed in damp, dusty, or dirty environments.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

47 lbs

Dimensions:

13 x 19 x 12 inches

HS Code:

8501.52.8040

UPC:

722856051554

Technical Details

Brand:

Marathon

Application:

General Purpose

Output HP:

1.5//1

Output KW:

1.1//0.75

Output RPM:

1725//1425

Frame Size NEMA:

56HC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230/460//190/380

Product Information Packet
