G569 MARATHON 1/2HP 3-PHASE XRI GENERAL PURPOSE MOTOR 056T34F5308

Electric Motors

Discontinued Electric Motors

Marathon Discontinued Motors

1/2HP MARATHON 3450RPM 56C TEFC 3PH MOTOR G569

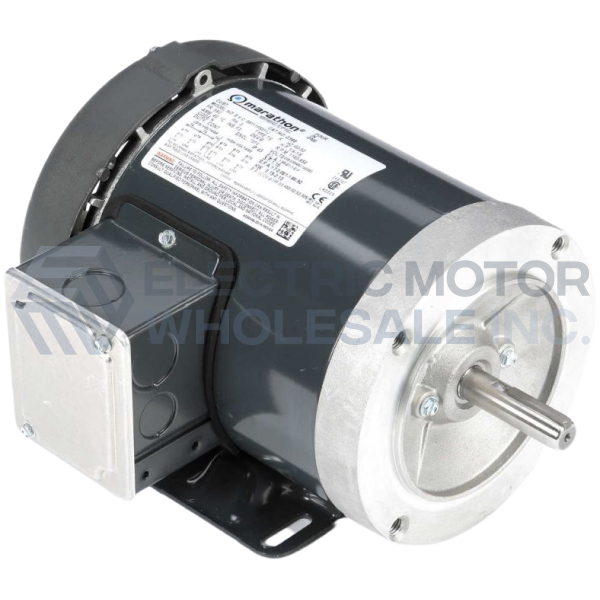

Picture is for reference only.

Part Number:

G569

Model/Spec Number:

056T34F5308

Manufacturer:

Marathon Obsolete

G569 MARATHON 1/2HP Three Phase Totally Enclosed General Purpose Rigid Base Motor designed for use on pumps, fans, blowers, compressors, conveyors, and other industrial machinery installed in damp, dusty, or dirty environments.

Item Discontinued

Click below to request an agent review potential options.

Shipping Details

Free No Rush Shipping

Weight:

25 lbs

Dimensions:

14 x 17 x 12 inches

HS Code:

8501.51.4000

UPC:

722856015648

Technical Details

Specifications

Brand:	Marathon
Application:	General Purpose
Output HP:	0.50//0.33
Output KW:	0.37//0.25
Output RPM:	3450//2850
Frame Size NEMA:	56C
Mount NEMA:	C Face With Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP43
Voltage:	208-230/460//190/380

Documentation

Product Information Packet

Additional Information

APPLICATIONS: General purpose use on gear reducers, pumps, machine tools, and other
direct-coupled equipment installed in damp, dusty, or dirty environments.

FEATURES:

Ball bearings, mechanically locked on shaft end
Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
Accepts brake kits
UL Recognized and CSA Certified

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
