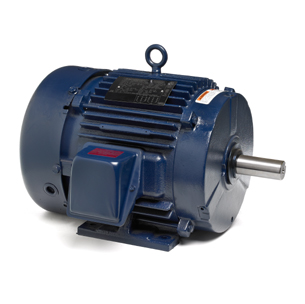

60HP MARATHON 1800RPM 364T 208-230/460V TEFC 3PH MOTOR E985B

APPLICATIONS: For use on compressors, pumps, conveyors, blowers, and other machinery in dirty and dusty environments. Substantial energy savings can be realized when using this high efficiency motor. Guaranteed efficiencies offer an eXtra Return on your Investment when using this premium efficiency motor on high cycle or long run time applications.

FEATURES:

• Cast Iron Frame
• Rigid base
• Totally enclosed fan-cooled
• 2 3/8" shaft output diameter
• Meets or exceeds NEMA Premium® efficiencies
• Suitable for use on a VFD, 10:1
• Will become build-up item when current stock is gone
• 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
• F1 conduit box on Rigid Base
• Shaft slinger
• Ball bearings
• UL Recognized, CSA Certified and CE Mark
• Three year warranty

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Phase	3	Insulation Class	F
Frame	364T	Duty	CONTINUOUS
Enclosure	TEFC	Ambient	40
Mounting	Rigid	NEMA Design	B
Orientation	HORIZONTAL	Starting Type	ACROSS THE LINE
Assembly	F1 (F2 Modification Available)	KVA Code	G
Drive End Bearing	BALL	IP Code	43
Opposite End Bearing	BALL
Drive End Bearing Size	6313
Opposite End Bearing Size	6313
Weight	948 LB lbs
CE	Y	CSA	Y
UL	Recognized Construction
Thermal Protection
