3HP MARATHON 3450RPM 56HC TEFC 3PH MOTOR D396A

3HP MARATHON 3450RPM 56HC TEFC 3PH MOTOR D396A

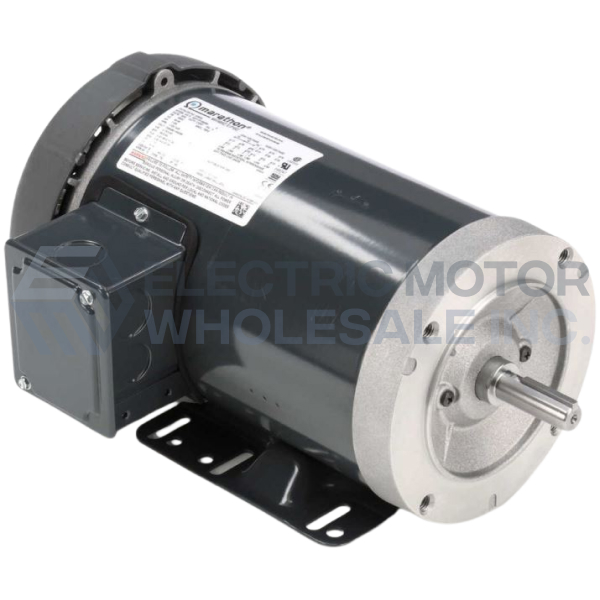

56HC TEFC WB v1.jpg
Picture is for reference only.

Part Number:

D396A

Model/Spec Number:

056T34F99014

Manufacturer:

Marathon Obsolete
D396A MARATHON 3HP Three Phase Totally Enclosed General Purpose Rigid Removable Base Motor designed for use on pumps, fans, blowers, compressors, conveyors, and other industrial machinery installed in damp, dusty, or dirty environments.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

54 lbs

Dimensions:

13 x 19 x 12 inches

HS Code:

8501.52.4000

UPC:

722856050854

Technical Details

Brand:

Marathon

Application:

General Purpose

Output HP:

3//2

Output KW:

2.2//1.49

Output RPM:

3450//2850

Frame Size NEMA:

56HC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230/460//190/380

Product Information Packet
