2HP MARATHON 1760RPM 145TC TEFC 3PH BRAKE MOTOR C403A

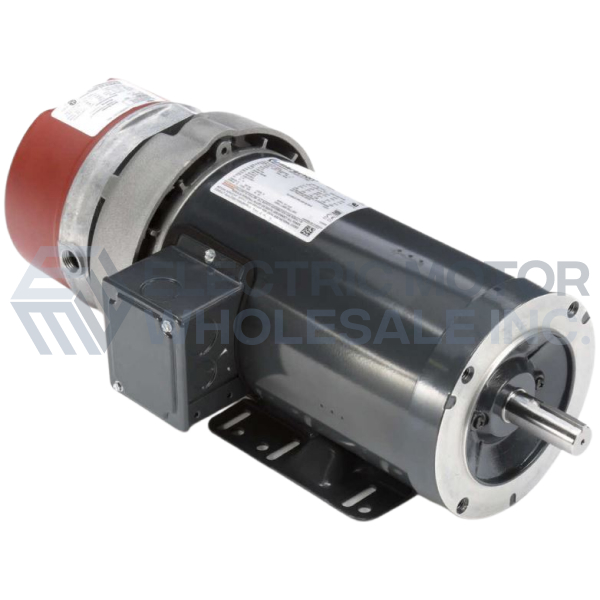

Picture is for reference only.

Part Number:

C403A

Model/Spec Number:

145TTFR16359

Manufacturer:

Marathon Obsolete

C403A MARATHON 2HP Three Phase Totally Enclosed Brake motor is designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

62 lbs

Dimensions:

17 x 23 x 15 inches

HS Code:

8501.52.4000

UPC:

722856050816

Technical Details

Specifications

Brand:	Marathon
Application:	Brakemotor
Output HP:	2//1.5
Output KW:	1.5//1.1
Output RPM:	1760//1460
Frame Size NEMA:	145TC
Mount NEMA:	Bolt-on Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP43
Voltage:	230/460//190/380

Documentation

Product Information Packet

Additional Information

APPLICATIONS: Brake motor designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

FEATURES:

Fail-safe, spring set Stearns 56 Series brake for holding or stopping
Manual release lever on rear of brake housing
Brake leads are terminated at the brake
Universal mounting, no modifications needed
Ball bearings, mechanically locked on shaft end
UL Recognized and CSA Certified
Brake has manual wear adjustment for longer disc life

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
