215TTFWD16079 MARATHON 5HP 3-PHASE XRI GENERAL PURPOSE MOTOR C388B

Electric Motors

Discontinued Electric Motors

Marathon Discontinued Motors

5HP MARATHON 1170RPM 215TC TEFC 3PH MOTOR C388B

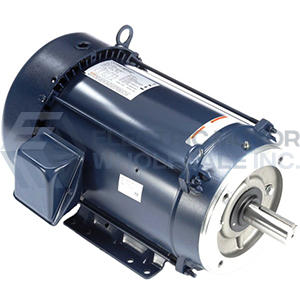

Picture is for reference only.

Part Number:

C388B

Manufacturer:

Marathon Obsolete

Manufacturer Part Number:

215TTFWD16079

C388B MARATHON 5HP Three Phase Totally Enclosed General Purpose Rigid Base Motor designed for use on pumps, fans, blowers, compressors, conveyors, and other industrial machinery installed in damp, dusty, or dirty environments.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

174 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.52.4000

UPC:

722856067043

Technical Details

Specifications

Brand:	Marathon
Application:	General Purpose
Output HP:	5
Output KW:	3.7
Output RPM:	1170
Frame Size NEMA:	215TC
Mount NEMA:	C Face With Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP43
Voltage:	208-230/460//190/380

Documentation

Product Information Packet

Additional Information

APPLICATIONS: General purpose use on gear reducers, pumps, machine tools, and other direct-coupled equipment installed in damp, dusty, or dirty environments.

FEATURES:

1 3/8" output shaft diameter
Meets or exceeds NEMA Premium efficiency
Ball bearings, mechanically locked on shaft end
1.15 Service Factor
Motor will NOT accept a Brake kit
UL Recognized and CSA Certified
Efficiency levels meet EISA requirements

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.
