1/4HP MARATHON 1725RPM 56C 115/208-230V DP 1PH MOTOR C354
1/4HP MARATHON 1725RPM 56C 115/208-230V DP 1PH MOTOR C354

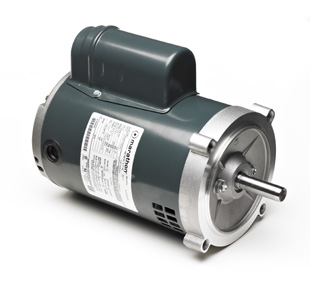

Picture is for reference only.
Part Number:
C354Manufacturer:
Marathon ObsoleteManufacturer Part Number:
C354This Marathon motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.
This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
12 x 20 x 12 inchesTechnical Details
Specifications
Application: | General Purpose, HVAC |
Output HP: | 1/4 |
Output RPM: | 1300-1800 |
Frame NEMA: | 56C |
Mount NEMA: | C-Face No Base |
Enclosure NEMA: | DP, OPEN, ODP, OPSB |
Voltage: | 115, 115/208-230, 115/230, 230 |
Frequency (Hz): | 60 |
Thermal Protection: | Automatic |
Phase: | 1-Phase |
Additional Information
MARATHON C354 has been Superseded by C354A
| Catalog Number: | C354 |
| Model Number: | 5KC35JN70X |
| Description: | 1/4HP,1725RPM,56C,115/208-230V,DP,1PH,60HZ |
| Design: | CAPACITOR START |
| Ship Weight: | 20 lbs. |
| Phase | 1 | Insulation Class | B |
|---|---|---|---|
| Frame | 56C | Duty | Continuous |
| Enclosure | DP | Ambient | 40 |
| Mounting | N/R | NEMA Design | N/A |
| Orientation | Horizontal or Vertical | Starting Type | Switch and Mech |
| Assembly | N/A | KVA Code | N |
| Drive End Bearing | BALL | IP Code | N/A |
| Opposite End Bearing | BALL | ||
| Drive End Bearing Size | 6203 | Rotation | Clockwise |
| Opposite End Bearing Size | 6203 | Hazardous Location | N/R |
| Weight | 15 LB lbs | ||
| CE | N/A | CSA | Y |
| UL | Y | ||
| Thermal Protection | Automatic | ||
