A157 MARATHON STEARNS 87000 Series Vertical BRAKE MOUNTING KIT

A157 MARATHON STEARNS 87000 Series Vertical BRAKE MOUNTING KIT


Part Number:

A157

Model/Spec Number:

5-66-3174-00

Manufacturer:

Marathon LLC Parts

Manufacturer Part Number:

KIT VRT87BRK
A157 MARATHON 87000 Series Vertical Brake Mounting Kit includes required hardware to accommodate vertical above (shaft down) or vertical below (shaft up) mounting.
MSRP: $242.00

Regular Price

USD

$

181

00

QTY
Login to View Discounts

Weight:

3 lbs

Dimensions:

3 x 7 x 7 inches

HS Code:

8503.00.5000

UPC:

722856045478

Technical Details

Brand:

Leeson, Marathon

Stearns Series:

87000, 87100

Static Torque Lb.-ft.:

50-105

Enclosure NEMA:

NEMA2, NEMA4

Enclosure IEC:

IP23, IP54

Endplate Material:

Aluminum, Cast Iron

Mount Orientation:

Vertical Above/Below

Application:

General Purpose

Marathon 87,000 Series Vertical Mounting Kit Includes required hardware and instructions to accommodate vertical above (shaft down) or vertical below (shaft up) mounting.

Includes the following parts.

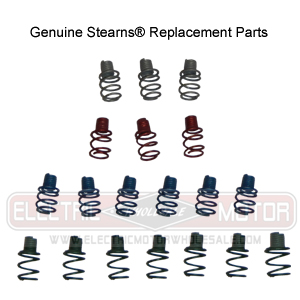

  • Qty 3, 970111500 Vertical Spring (plain)
  • Qty 3, 970111600 Vertical Spring (purple)
  • Qty 3, 970111800 Vertical Spring (blue)
  • Qty 3, 970111900 Vertical Spring (red)
  • Qty 1, 800570224 Pressure Plate CI-Vertical

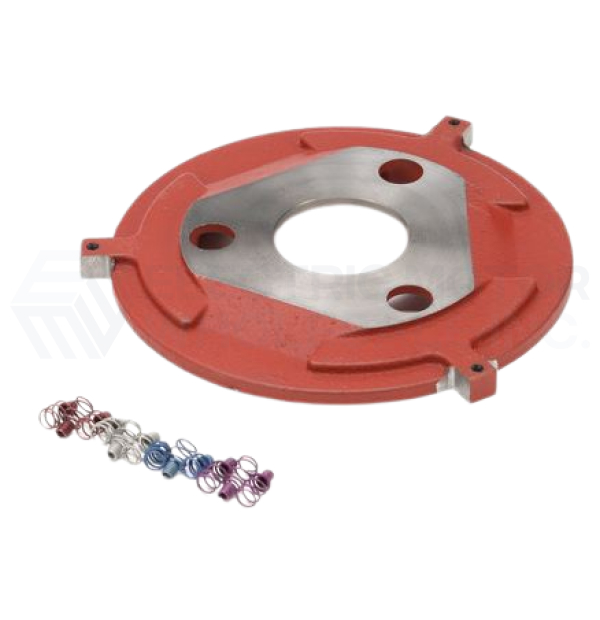

Image for STEARNS 87000 Series Vertical Pressure Plate w/springs 566317400
