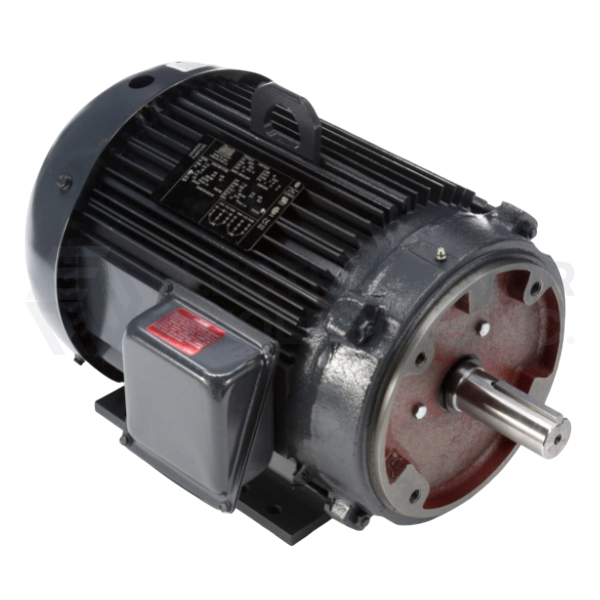

7.5HP MARATHON 1770RPM 213TC TEFC 3PH GENERAL PURPOSE MOTOR LM16752

7.5HP MARATHON 1770RPM 213TC TEFC 3PH GENERAL PURPOSE MOTOR LM16752

Picture is for reference only.

Part Number:

LM16752

Model/Spec Number:

AF4B7.5TC61

Manufacturer:

Marathon BTO
LM16752 MARATHON 7.5HP PREMIUM motor carries a three-year warranty in general purpose and inverter fed applications. This motor meets or exceeds most utility rebate programs and the EPAct federally mandated efficiency levels

Ordering Notes

Product is MTO with estimated 10 week lead times. Motor CANNOT be cancelled or returned once purchased. Please consult our sales team for availability. Use the Data-Sheet provided to confirm product specs before purchasing..

MSRP: $1,777.00

Regular Price

USD

$

1,226

13

QTY
Login to View Discounts

Weight:

150 lbs

Dimensions:

23 x 26 x 21 inches

HS Code:

8501.52.4000

UPC:

691720061770

Technical Details

Brand:

Marathon

Application:

General Purpose

Output HP:

7.5//5.0

Output KW:

5.6

Output RPM:

1770//1455

Frame Size NEMA:

213TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230/460//380-415

LM16752 Data Sheet

TEFC Models: For use where exposure to water, dust and corrosives exists. Ideally suited for use on pumps, compressors, fans, blowers, conveyors, machine tools and other industrial applications.

Features Include:

• IP43 Ingress Protection
• NEMA Premium models are in compliance with EISA 2007
• 182T to 286T frame
• Cast Aluminum Frame with cast iron end brackets
• Steel conduit box with steel fan guard
• Nameplated for 60 & 50HZ
• Inverter Rated - Any Inverter or VFD Brand
• Inverter duty 4:1 constant torque and 10:1 variable torque, 1.0 SF • MAX Guard® Class F Insulation
• 1.25 service factor (SF) on sinewave, 1.0 service factor on IGBT power
• Standard assembly F1, reversible to F2 assembly
• For C-Face, D-Flange, kits available, see accessory section
• UL®* Recognized, CSA®* certified, CE®* mark
• Three year warranty
