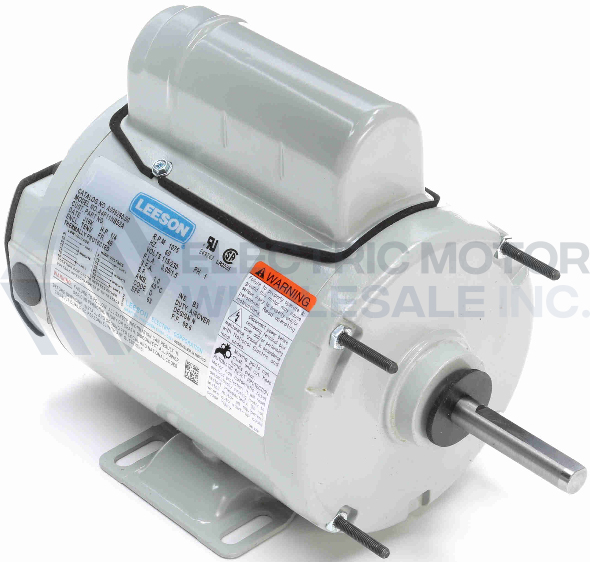

A099946.00 LEESON 1/2HP 1PH PSC Variable Torque Fan Motor A4P11NB54A

1/2HP LEESON 1075RPM 48Z TEAO 1PH MOTOR A099946.00

Part Number:

A099946.00

Model/Spec Number:

A4P11NB54A

Manufacturer:

Regal Rexnord Commercial

A099946.00 LEESON 1/2HP Single Phase PSC Variable Torque Fan Motor is designed for dependable, energy saving performance in applications where the fan is mounted on the shaft of the motor. The permanent split capacitor design does not require a centrifugal switch, resulting in higher reliability than other types of single phase motors. This design is also more energy efficient and less expensive to operate.

Technical Details

Specifications

Application:	HVAC
Output HP:	1/2
Output KW:	0.37
Output RPM:	1075
Frame NEMA:	48Z
Mount NEMA:	Thru-Bolt, Base Mount
Enclosure NEMA:	TEAO
Enclosure IEC:	IP43
Voltage:	115/230
Frequency (Hz):	60

Documentation

Product Information Packet

Leeson Warranty

Additional Information

LEESON Single Phase PSC Variable Torque Fan Motor is designed for dependable, energy saving performance in applications where the fan is mounted on the shaft of the motor. The permanent split capacitor design does not require a centrifugal switch, resulting in higher reliability than other types of single phase motors. This design is also more energy efficient and less expensive to operate.

FEATURES:

Rolled steel frame with rigid base and corrosion resistant epoxy paint
2-1/2" long by 1/2" diameter output shaft with flat and slinger
1" long extended thrubolts
Overload protected with a UL and CSA recognized automatic reset protector
Must be mounted within the air stream of the driven fan
Because of the inherently low starting torques of this design, these motors are not suitable for belt driven fan applications
Non USA Manufactured, MX
