7.5HP LEESON 3530RPM 213T EPFC 3PH EXPLOSION PROOF MOTOR 825088.00

7.5HP LEESON 3530RPM 213T EPFC 3PH EXPLOSION PROOF MOTOR 825088.00

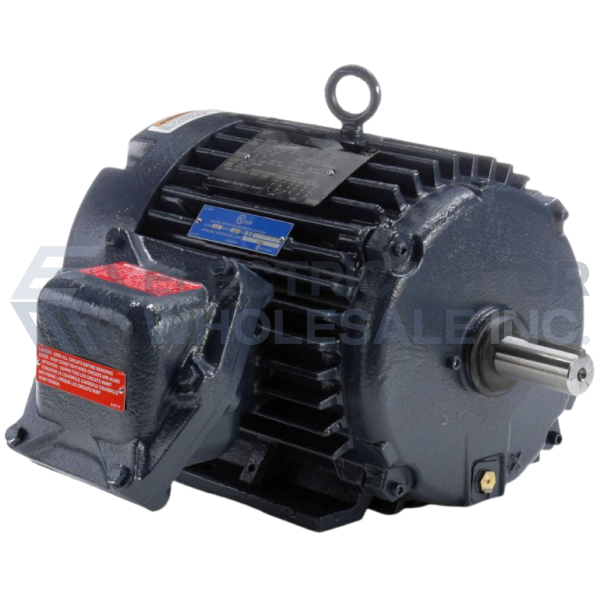

Picture is for reference only.

Part Number:

825088.00

Model/Spec Number:

213TTGN16527

Manufacturer:

Leeson Obsolete
825088.00 LEESON 7.5HP Three Phase Explosion Proof Motor is designed and approved for applications in hazardous environments having certain explosive gases or materials present.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

213 lbs

Dimensions:

23 x 29 x 20 inches

HS Code:

8501.52.8040

UPC:

691720092835

Technical Details

Brand:

Leeson

Application:

Explosion Proof

Output HP:

7.5

Output KW:

5.5

Output RPM:

3530

Frame Size NEMA:

213T

Mount NEMA:

With Base

Enclosure NEMA:

EPFC

Enclosure IEC:

IP54

Voltage:

230/460

Product Information Packet

Explosion-Proof-Definitions
