1HP LEESON 1725RPM 56C TENV 1PH BOAT HOIST MOTOR 6439191252

1HP LEESON 1725RPM 56C TENV 1PH BOAT HOIST MOTOR 6439191252

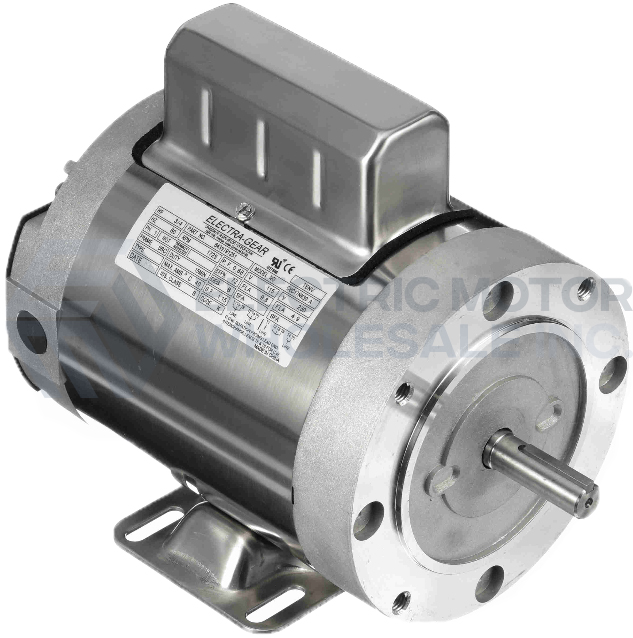

C FACE WITH BASE.jpg
Picture is for reference only.

Part Number:

6439191252

Model/Spec Number:

C6C17NK31 A

Manufacturer:

Regal Rexnord Commercial
6439191252 LEESON 1HP Single Phase Electra Stainless Steel Boat Hoist Motor provides customized features that are needed to support the Boat Hoist Industry.
MSRP: $1,699.00

Regular Price

USD

$

706

44

QTY
Login to View Discounts

Weight:

43 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501.40.6040

UPC:

691720000250

Technical Details

Application:

Boat Lift Duty

Output HP:

1

Output KW:

0.75

Output RPM:

1725

Frame NEMA:

56C

Mount NEMA:

C-Face With Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP43

Voltage:

115/230

Frequency (Hz):

60

Product Information Packet

LEESON/ELECTRA Single Phase Stainless Steel Boat Hoist Motors provide customized features that are needed to support the Boat Hoist Industry.

FEATURES:

  • Stainless Steel frame, base, capacitor case and conduit box cover
  • 15 Minute Duty Cycle
  • 5/8" Keyed output shaft
  • Drain Holes located at 6:00 position
  • Die Cast Aluminum endbells
  • Capacitor case located at 12:00
  • 115/230 Volt - 1.15 Service Factor
  • UL and CSA listed
