LEESON Single Phase Stainless Boat Lift Hoist Motors

/

1HP LEESON 1725RPM 56C TENV 1PH BOAT HOIST MOTOR 119217.00

1HP LEESON 1725RPM 56C TENV 1PH BOAT HOIST MOTOR 119217.00

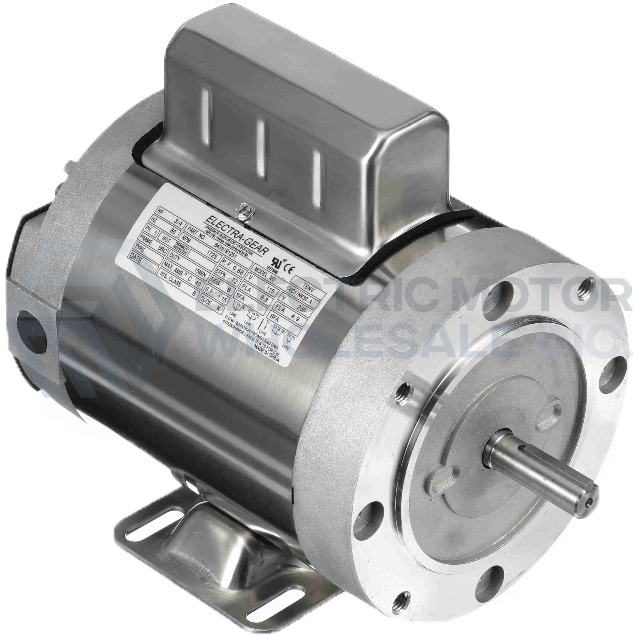

C FACE WITH BASE.jpg
Picture is for reference only.

Part Number:

119217.00

Model/Spec Number:

C6C17NK33A

Manufacturer:

Regal Rexnord Commercial
119217.00 LEESON 1HP Single Phase Electra Stainless Steel Boat Hoist Motor provides customized features that are needed to support the Boat Hoist Industry.
MSRP: $1,376.00

Regular Price

USD

$

572

14

QTY
Login to View Discounts

Weight:

31 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.6040

UPC:

691720108222

Technical Details

Application:

Boat Lift Duty

Output HP:

1

Output KW:

0.75

Output RPM:

1725

Frame NEMA:

56C

Mount NEMA:

C-Face With Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP43

Voltage:

115/230

Frequency (Hz):

60

Product Information Packet

LEESON Single Phase Stainless Steel Boat Hoist Motors provide customized features that are needed to support the Boat Hoist Industry.

FEATURES:

  • Stainless Steel frame, base, capacitor case and conduit box cover
  • 10 Minute Duty Cycle
  • 5/8" Keyed output shaft
  • Drain Holes located at 6:00 position
  • Die Cast Aluminum endbells
  • Capacitor case located at 12:00
  • 115/230 Volt - 1.0 Service Factor
  • UL and CSA listed
