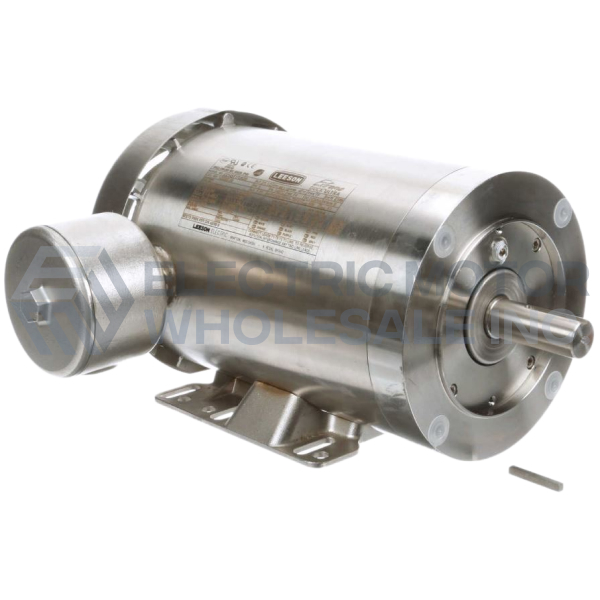

1.5HP LEESON 1750RPM 143TC TEFC 3PH STAINLESS WASHDOWN MOTOR 122221.00

LEESON Three Phase Extreme Duck Ultra Motor with Shaft Grounding Ring is designed to proctect motors that are used in applications involving the use of AC inverters to control the speed of the motor. They eliminate the stray voltages that may damage the motor's bearings. This motor is built to withstand severe chemical-processing applications and frequent washdown processes using salt water, nitric acids and solvents.

FEATURES:

• 7/8" Keyed output shaft
• NEMA Premium efficiency rating with a three year warranty
• All exterior components are 300-Series stainless steel
• IRIS inverter rated insulation system provides extra protection and long life
• Unique “Q-CAR” rotor/cartridge seal system designed for quick access to the interior of the motor
• "HS2" Hydro-sealed system eliminates the need for drain plugs and breathers
• Minimal exterior hardware which may trap contaminants
• Vacuum assisted internal epoxy encapsulation reduces interior air pockets where condensation can occur
• Full fact nameplate etched in frame
• Double sealed ball bearings
• Two piece Viton shaft seal with flinger
• Color-coded, non-wicking lead wires with chemical and abrasion resistant markers

Standards and Approvals

• Motors are UL component recognized – file number E57948, guide number PRGY2
• CSA Energy Efficiency Verification Program, report number EEV 78720-1
• Construction is CSA Certified for safety, report number LR33543
• Listed under BISSC authorization number 769
