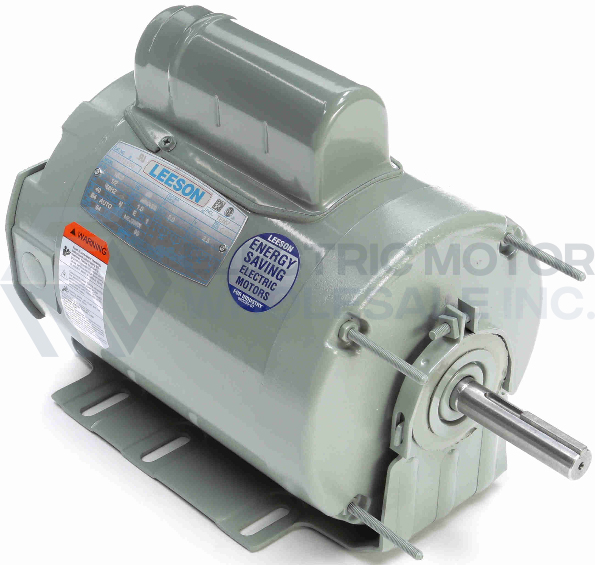

111322.00 LEESON 3/4HP 1PH PSC Variable Torque Fan Motor A6P11NRH

3/4HP LEESON 1075RPM 56HZ TEAO 1PH MOTOR 111322.00

Part Number:

111322.00

Model/Spec Number:

A6P11NR2H

Manufacturer:

Regal Rexnord Commercial

111322.00 LEESON 3/4HP Single Phase Resilient Base PSC Variable Torque Fan Motor is designed for dependable, energy saving performance in applications where the fan is mounted on the shaft of the motor. The permanent split capacitor design does not require a centrifugal switch, resulting in higher reliability than other types of single phase motors. This design is also more energy efficient and less expensive to operate.

MSRP: $1,226.00

Regular Price

USD

431

QTY

Shipping Details

Weight:

49 lbs

Dimensions:

11 x 17 x 13 inches

HS Code:

8501.40.4040

UPC:

691720009857

Technical Details

Specifications

Application:	HVAC
Output HP:	3/4
Output KW:	0.56
Output RPM:	1075
Frame NEMA:	56HZ
Mount NEMA:	Resilient Base
Enclosure NEMA:	TEAO
Enclosure IEC:	IP43
Voltage:	115/230
Frequency (Hz):	60

Documentation

Product Information Packet

Leeson Warranty

Additional Information

LEESON Single Phase PSC Variable Torque Fan Motor is designed for dependable, energy saving performance in applications where the fan is mounted on the shaft of the motor. The permanent split capacitor design does not require a centrifugal switch, resulting in higher reliability than other types of single phase motors. This design is also more energy efficient and less expensive to operate.

FEATURES:

Made in USA
2-5/8” long by 5/8” diameter keyed output shaft
Overload protected with a UL and CSA recognized automatic reset protector
Must be mounted within the air stream of the driven fan
Because of the inherently low starting torques of this design, these motors are not suitable for belt driven fan applications.
