Product Overview

109106.00 LEESON 2HP Low Voltage NEMA Frame DC Motor is designed specifically for battery, solar, or generator supplied applications. Dynamic braking and reversible rotation capabilities.

Part Number:

109106.00

Model/Spec Number:

C4D18FK6

Manufacturer:

Regal Rexnord Commercial

Technical Details

Specifications

Application	General Purpose
Output HP	2
Output KW	1.5
Output RPM	1800
Frame NEMA	S56CZ
Mount NEMA	C-Face With Base

Documentation

Product Information Packet

Additional Information

LEESON 24V Low Voltage NEMA Frame DC Motor is designed specifically for battery, solar, or generator supplied applications. Dynamic braking and reversible rotation capabilities.

Features:

7/8" Keyed output shaft
Durable rolled steel frame
C-face mounting provisions with removeable base

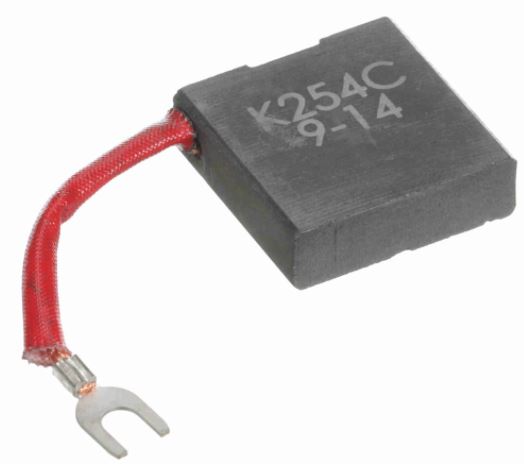

Oversized brushes for long life
External access to brushes allows for easy replacement
Heavy-duty, stamped steel, bolt on base (removable)
Rugged die cast endshields with steel bearing inserts
Permanently lubricated sealed ball bearings
Convert to NEMA 48 frame base dimensions or NEMA 42/48 frame C face dimensions with modification kits
High starting torques for heavy load applications
Linear speed torque characteristics throughout the speed range
Capable of dynamic braking for faster stops
Reversible rotation
Simple two lead connection
