1HP LEESON 3000RPM 80 IP54 24VDC IEC PERMANENT MAGNET MOTOR 108456.00
1HP LEESON 3000RPM 80 IP54 24VDC IEC PERMANENT MAGNET MOTOR 108456.00
Product Overview
108456.00 LEESON 1HP 24VDC Metric IEC Frame IP54 Motor is built to IEC 34-1 electrical and mechanical standards.Part Number:
108456.00Model/Spec Number:
CI4D34FT5Manufacturer:
Regal MOQTechnical Details
Specifications
Application | General Purpose |
Output HP | 1 |
Output KW | 0.75 |
Output RPM | 3000 |
Frame IEC | 80 |
Mount IEC | Optional Mounting |
Documentation
Additional Information
LEESON DC METRIC IEC Frame IP54 Motors are built to IEC 34-1 electrical and mechanical standards. The IEC 63 and smaller frames are stocked with an integral B5 flange or B14 face less base. An optional B3 rigid base kit is available. A unique modular approach for IEC 71 frame and larger allows the motor to be field modified to B3 rigid base mounted construction, B5 flange mounted or B14 face mounted construction using conversion kits. Please note the one or more of the mounting kits must be used with IEC motors of these frame sizes.
Electrical & Mechanical Features: A terminal board is provided for connections. All fasteners are metric. Electrical and mechanical features are the same as listed for the NEMA frame motors. Tachometer mounting kits are available for 71 and 80 frames only.

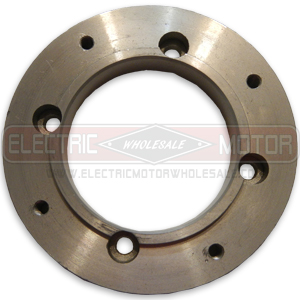

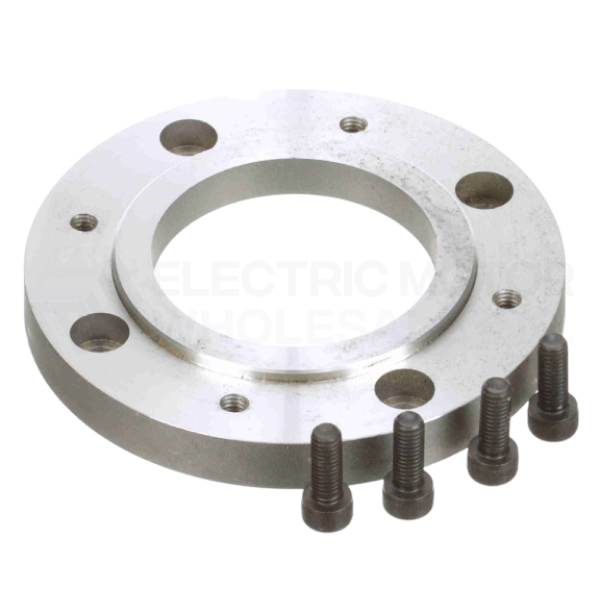

NOTE: These round body motors require either a B3 rigid base, B14 face, or B5 flange kit shown in related products.
Terminal bolts at 12:00.
