108371.00 LEESON 1.5HP 180VDC IEC MOTOR CI4D17FT3

1.5HP LEESON 1800RPM 80 IP54 180VDC IEC PERMANENT MAGNET MOTOR 108371.00

Part Number:

108371.00

Model/Spec Number:

CI4D17FT3

Manufacturer:

Leeson Obsolete

108371.00 LEESON 1.5HP 180VDC Permanent Magnet Metric IEC Frame IP54 SCR Rated Motor is built to IEC 34-1 electrical and mechanical standards.

Ordering Notes

Discontinued item with limited availability, subject to prior sale. Please call to confirm availability before ordering. Non-Returnable.

Item Discontinued

Click below to request an agent review potential options.

Shipping Details

Weight:

56 lbs

Dimensions:

13 x 22 x 13 inches

HS Code:

8501.32.2000

UPC:

691720006931

Technical Details

Specifications

Application:	General Purpose
Output HP:	1.5
Output KW:	1.1
Output RPM:	1800
Frame IEC:	80
Mount IEC:	Optional Mounting
Input Voltage DC:	180
Full Load Amps:	9.0
Winding:	Permanent Magnet
Enclosure NEMA:	TEFC

Documentation

Product Information Packet

Additional Information

LEESON DC METRIC IEC Frame IP54 Motors are built to IEC 34-1 electrical and mechanical standards. The IEC 63 and smaller frames are stocked with an integral B5 flange or B14 face less base. An optional B3 rigid base kit is available. A unique modular approach for IEC 71 frame and larger allows the motor to be field modified to B3 rigid base mounted construction, B5 flange mounted or B14 face mounted construction using conversion kits. Please note the one or more of the mounting kits must be used with IEC motors of these frame sizes.

Electrical & Mechanical Features: A terminal board is provided for connections. All fasteners are metric. Electrical and mechanical features are the same as listed for the NEMA frame motors. Tachometer mounting kits are available for 71 frames only.

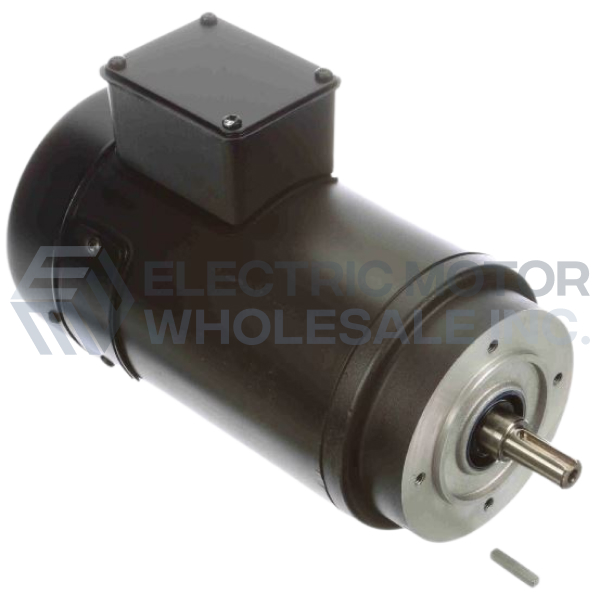

NOTE: These round body motors require either a B3 rigid base, B14 face, or B5 flange kit shown in related products.
