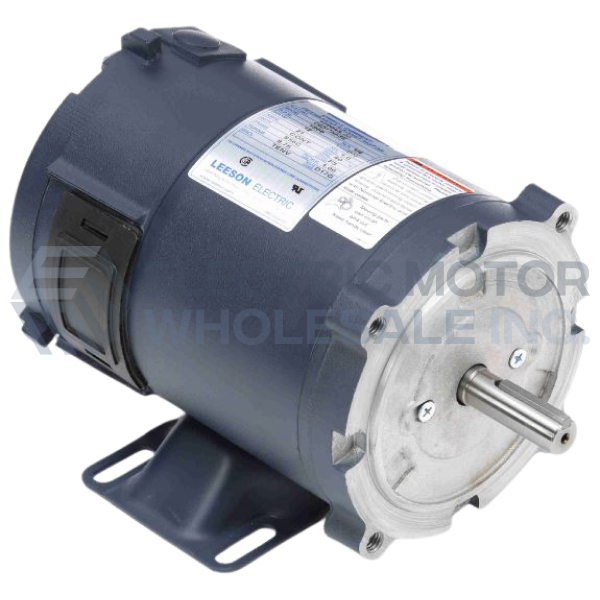

1/2HP LEESON 1750RPM 56C TENV 24VDC PERMANENT MAGNET MOTOR 108051.00

Part Number:

108051.00

Model/Spec Number:

C4D17NK10D

Manufacturer:

Regal Rexnord Commercial

108051.00 LEESON 1/2HP Low Voltage NEMA Frame DC Motor is designed specifically for battery, solar, or generator supplied applications. Dynamic braking and reversible rotation capabilities.

MSRP: $1,411.00

Regular Price

USD

$

587

00

QTY

Login to View Discounts

Shipping Details

Weight:

34 lbs

Dimensions:

13 x 20 x 13 inches

HS Code:

8501.31.4000

UPC:

691720006740

Technical Details

Specifications

Application:	General Purpose
Output HP:	1/2
Output KW:	0.37
Output RPM:	1750
Frame NEMA:	S56C
Mount NEMA:	C-Face With Base
Input Voltage DC:	24
Full Load Amps:	20.0
Winding:	Permanent Magnet
Enclosure NEMA:	TENV

Documentation

Product Information Packet

Additional Information

LEESON 24V Low Voltage NEMA Frame DC Motor is designed specifically for battery, solar, or generator supplied applications. Dynamic braking and reversible rotation capabilities.

Features:

5/8" Keyed output shaft
Durable rolled steel frame
C-face mounting provisions with removeable base
Oversized brushes for long life
External access to brushes allows for easy replacement
Heavy-duty, stamped steel, bolt on base (removable)
Rugged die cast endshields with steel bearing inserts
Permanently lubricated sealed ball bearings
Convert to NEMA 48 frame base dimensions or NEMA 42/48 frame C face dimensions with modification kits
High starting torques for heavy load applications
Linear speed torque characteristics throughout the speed range
Capable of dynamic braking for faster stops
Reversible rotation
Simple two lead connection
