1/2HP LEESON 1725RPM 48 DP 115V 1PH WATTSAVER MOTOR 101585.00

1/2HP LEESON 1725RPM 48 DP 115V 1PH WATTSAVER MOTOR 101585.00

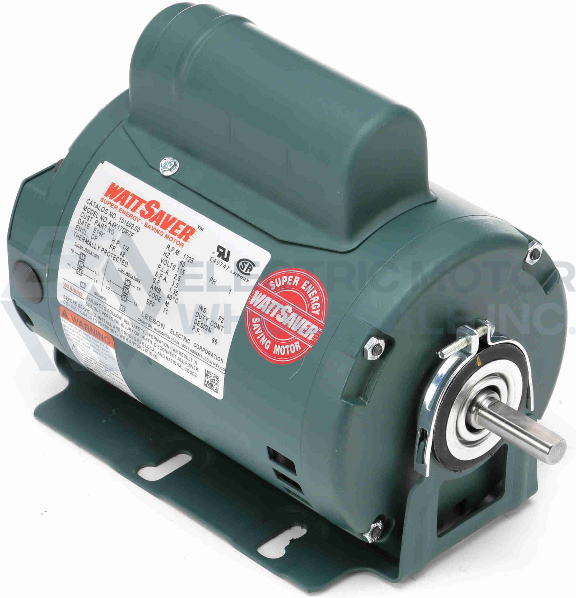

WATTSAVER RESILIENT BASE.jpg
Picture is for reference only.

Part Number:

101585.00

Model/Spec Number:

A4K17DR6

Manufacturer:

Regal Rexnord Commercial
101585.00 LEESON 1/3HP Single Phase Resilient Base WATTSAVER Motor for use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans, and belted applications.
MSRP: $1,061.00

Regular Price

USD

$

441

16

QTY
Login to View Discounts

Weight:

25 lbs

Dimensions:

12 x 22 x 16 inches

HS Code:

8501.40.4040

UPC:

691720005743

Technical Details

Application:

HVAC

Output HP:

1/2

Output KW:

0.37

Output RPM:

1725

Frame NEMA:

48

Mount NEMA:

Resilient Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

115

Frequency (Hz):

60

Product Information Packet

Obsolete-A4K17DR6G

LEESON Single Phase Resilient Base WATTSAVER Motor for use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans, and belted applications.

FEATURES:

  • Motor has terminal board connection
  • Moderate starting torque
  • NEMA Design B performance
  • UL Recognized and CSA Certified
  • Non-USA Manufactured, MX.
